Small Pitch LEDs: For Ambient Precision Visual Effects

Home
INDOOR LED SCREEN
SMD
WL21-1516 Series

Standard Fine Pitch LED Display

Model:WL21-1516 Series

- Standard 16:9 aspect ratio compatibility
- Supports FHD/UHD screen assembly
- Ideal for home theaters and conferences
- Optimized for digital signage applications

Tag:Smart center display, conference room display, LED display module

Get a Quote Download

Features Video Specifications Advantages Accessories

More Feature Are...

Adaptive brightness

Professional high refresh

High color standards

High quality copper bracket

Video

Unboxing Rental LED

LED installation demonstration

LED packaging and transportation display

Specifications

Module Specifications

The pixel spacing of each model is different, and you can choose according to the environmental conditions.

Product Name	WL21- 1516- P1.2	TW21- 1516- P1.5	TW21- 1516- P1.8	TW21- 1516- P2.5
Pixel Pitch(mm)	1.25mm	1.5625mm	1.875mm	2.5mm
Panel Material	Die Casting Aluminum	Die Casting Aluminum	Die Casting Aluminum	Die Casting Aluminum
Brightness	600nit	600nit	600nit	600nit
Pixel Density	640000pixel /sqm	409600pixel /sqm	2844444pixel /sqm	158815pixel /sqm

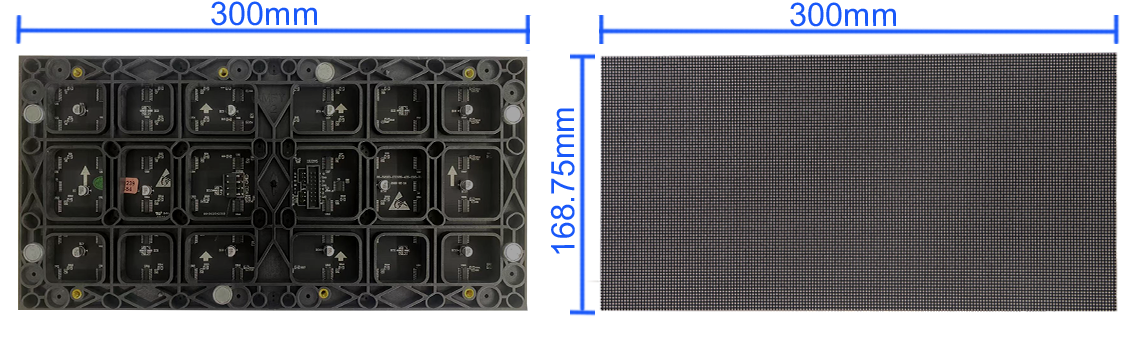

Module Size(W×H)	300mm×168.75mm	300mm×168.75mm	300mm×168.75mm	300mm×168.75mm
Panel Size(W×H)	600mm×337.5mm	600mm×337.5mm	600mm×337.5mm	600mm×337.5mm
Module Resolution	240(W)×135(H)	192(W)×108(H)	160(W)×90(H)	120(W)×67(H)
Panel Resolution	480(W)×270(H)	384(W)×216(H)	320(W)×180H)	240(W)×134(H)
Weight Per Panel	32KG /sqm	32KG /sqm	32KG /sqm	32KG /sqm
Horizontal Viewing Angle	160°	160°	160°	140°
Vertical Viewing Angle	140°	140°	140°	120°
Power Consumption	1.5m~3m	1.8m~3m	2m~3m	3m~10m
White Balance Brightness	400W /sqm	325W /sqm	325W /sqm	135W /sqm
Max Power Consumption	800W /sqm	650W /sqm	650W /sqm	450W /sqm
Refresh Rate	3840Hz	3840Hz	3840Hz	3840Hz
Software Manual Adjustment	100 Levels Adjustable	100 Levels Adjustable	100 Levels Adjustable	100 Levels Adjustable
Lifespan	100000 hours	100000 hours	100000 hours	100000 hours
Contrast	5000:1	5000:1	5000:1	5000:1

Download Brochure

We Can't Wait to Meet You!

No matter your application, our team of experts can deliver a turn-key visualization solution and world-class support optimized for your needs.

160° Wide Viewing Angle

WL21-1516 features an extra wide 160° viewing angle, ensuring clear visibility for large groups from various angles,

ideal for high-traffic areas like malls and public spaces.

Functional Advantages

Seamless splicing
High contrast
Ultra-wide viewing angle
Gold-plated power socket
High-quality lamp beads

High Quality Material

Details determine success or failure, only high-quality materials are used

Copper Wire Copper Bracket

The lamp uses copper wire and copper bracket. Compared with iron bracket, the lamp has a longer service life and is not afraid of rust and corrosion.

Copper wire copper bracket lamp (WILIANG WL21)

Copper wire iron bracket (Prone to rust)

Good Consistency And Long Life

Exceptional consistency ensuring uniform visual performance.
Extended longevity for reliable, long-term operation.
Versatile adaptability across all high-display applications.
Durable design sustaining quality in any environment.

King Light Engineering Exclusively For Lamp

Extended lifespan surpassing traditional copper-bracket lamps (King Light Engineering design).
High luminous consistency preventing color/brightness discrepancies.
Enhanced brightness via larger current capacity.
Corrosion-resistant construction ensuring rust-free durability.

Pin Header Anti-Collision Guardrail Protection

The pin header protection guardrail is used to protect the pin header and prevent the pin header from changing its array, which is more convenient for installation and transportation to prevent the pin header from being squeezed and deformed.
