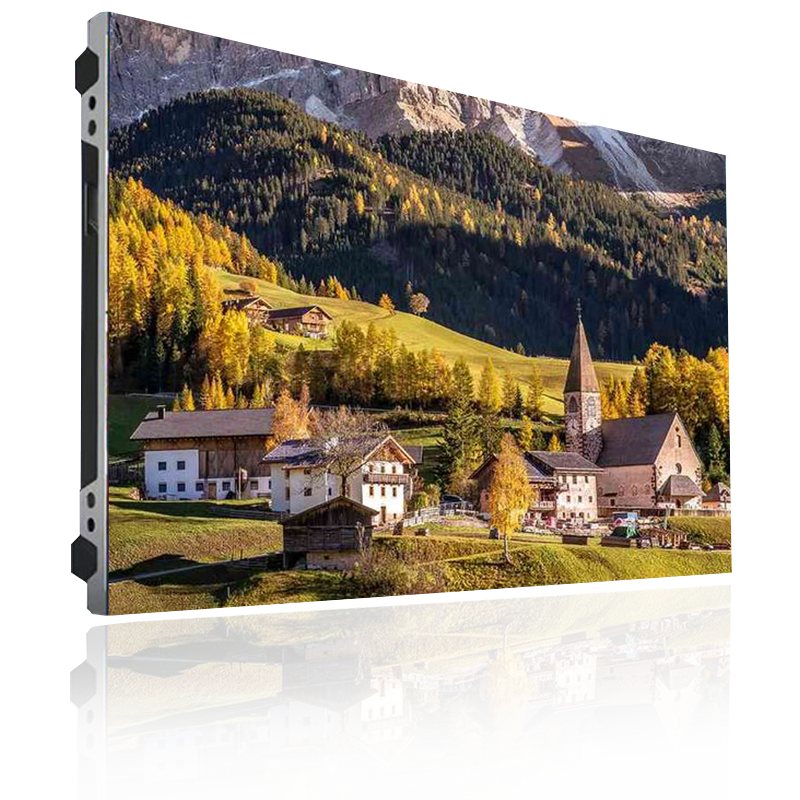

WL21-COB Seamless Indoor LED: For high-end spaces

LED COB Indoor Display

Model:WL21-COB Series

- High-Contrast COB LED Clarity
- Built for Demanding Environments
- Professional-Grade Image Quality
- Versatile and Durable With Long Life

Tag:COB Led Display、Quantum Dot Cob Led Display、Micro Led Display

Get a Quote Download

Features Video Specifications Advantages Accessories

More Feature Are...

Full Flip Chip Process

Ultra-high Contract Ratio With 10000:1

Adjustable Brightness

Energy Saving & Environmental Protection

High Stability

High Reliability With Long Service Life

High Protection

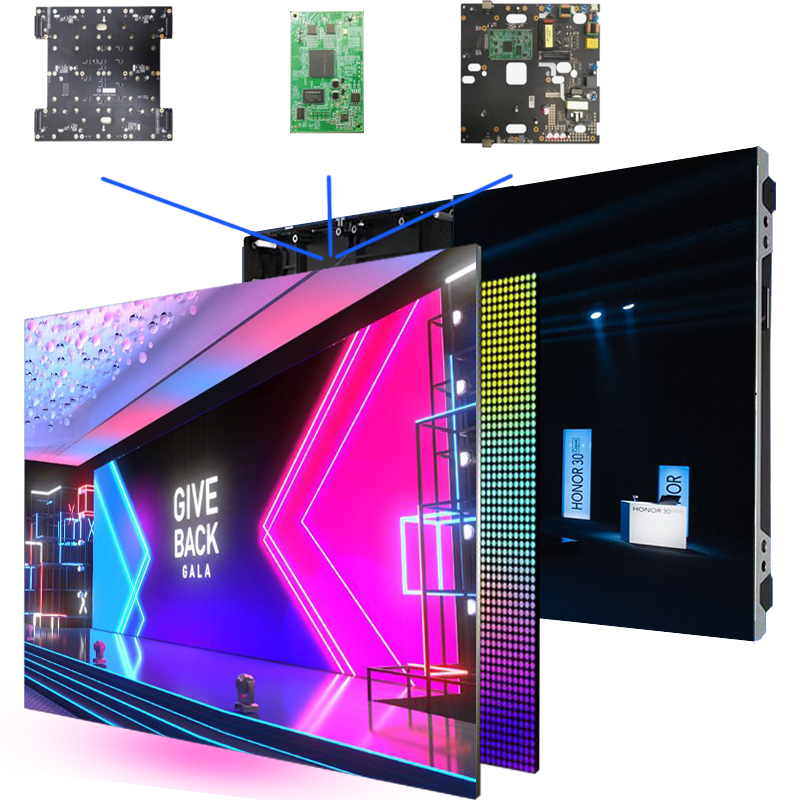

Simple Structure Integrated Control

Video

Unboxing Rental LED

LED installation demonstration

LED packaging and transportation display

Specifications

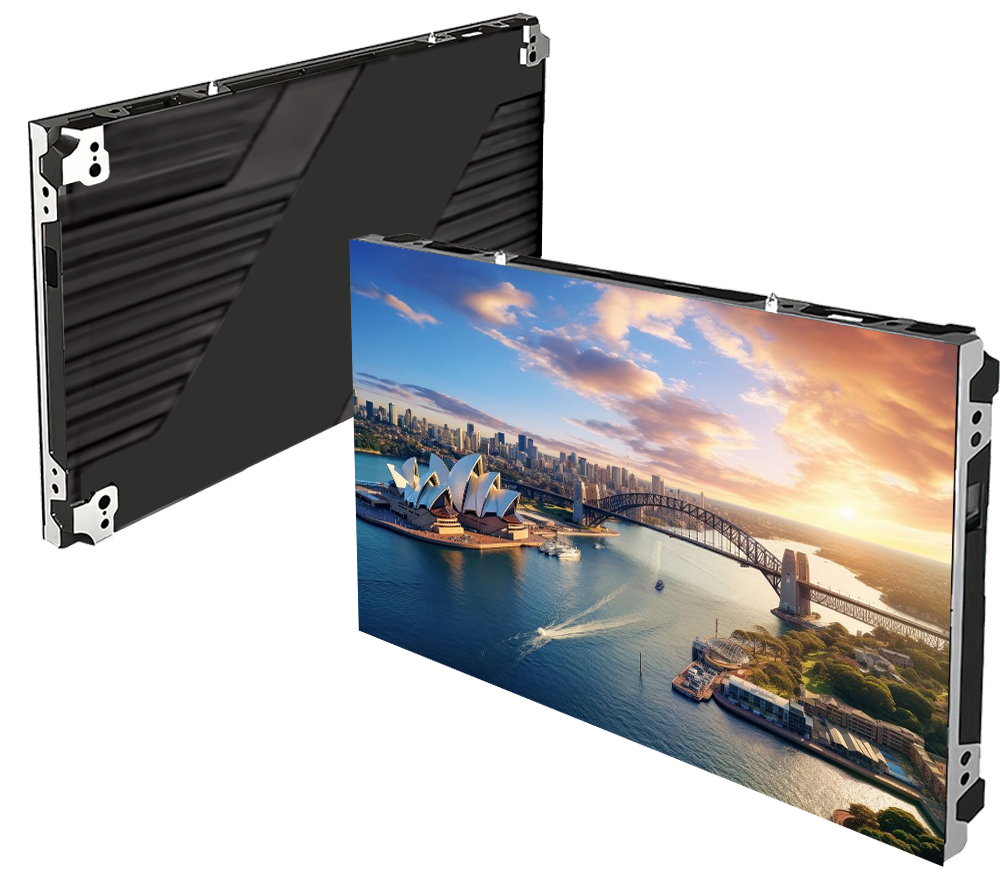

Cabinet Specs

Each cabinet (including all parts) weighs approximately 5 kg The weight of each model varies

Product Name	WL21- COB-P0.6	WL21- COB-P0.7	WL21- COB-P0.9	WL21- COB-P1.2	WL21- COB-P1.5	WL21- COB-P1.8
Pixel Pitch(mm)	0.625mm	0.78125mm	0.9375mm	1.25mm	1.5625mm	1.875mm
Panel Material	Die Casting Aluminum	Die Casting Aluminum	Die Casting Aluminum	Die Casting Aluminum	Die Casting Aluminum	Die Casting Aluminum
Brightness	600Nit	600Nit	600Nit	600Nit	600Nit	600Nit
Pixel Density	2560000 Pixel /Sqm	2560000 Pixel /Sqm	2560000 Pixel /Sqm	2560000 Pixel /Sqm	2560000 Pixel /Sqm	2560000 Pixel /Sqm
Module Size	150mm(W) x168.75mm(H)	150mm(W) x168.75mm(H)	150mm(W) x168.75mm(H)	150mm(W) x168.75mm(H)	150mm(W) x168.75mm(H)	150mm(W) x168.75mm(H)
Panel Size	600mm(W) x337.5mm(H)	600mm(W) x337.5mm(H)	600mm(W) x337.5mm(H)	600mm(W) x337.5mm(H)	600mm(W) x337.5mm(H)	600mm(W) x337.5mm(H)
Module Resolution	240(W)x270(H)	192(W)x216(H)	160(W)x180(H)	120(W)x135(H)	96(W)x108(H)	80(W)x90(H)
Panel Resolution	960(W)x540(H)	768(W)x432(H)	640(W)x360(H)	480(W)x270(H)	384(W)x216(H)	320(W)x180(H)
Weight Per Panel	6.4KG	4.6KG	5.1KG	5KG	5KG	5KG
Horizontal Viewing Angle	170°	170°	170°	170°	170°	170°
Vertical Viewing Angle	160°	160°	160°	160°	160°	160°
Best View Distance	0.8m~3m	1m~3m	1m~3m	1.5m~3m	1.8m~3m	2m~3.5m
Power Consumption	155W /Sqm	145W /Sqm	125W /Sqm	108W /Sqm	108W /Sqm	108W /Sqm
Max Power Consumption	460W /Sqm	435W /sqm	370W /sqm	330W /sqm	330W /sqm	330W /sqm
Refresh Rate	3840Hz	3840Hz	3840Hz	3840Hz	3840Hz	3840Hz
Software Manual Adjustment	100 Levels Adjustable	100 Levels Adjustable	100 Levels Adjustable	100 Levels Adjustable	100 Levels Adjustable	100 Levels Adjustable
Lifespan	100000 hours	100000 hours	100000 hours	100000 hours	100000 hours	100000 hours

Download Brochure

We Can't Wait to Meet You!

No matter your application, our team of experts can deliver a turn-key visualization solution and world-class support optimized for your needs.

Advantages of LED Indoor Fixed COB

Improve Thermal Management Capabilities

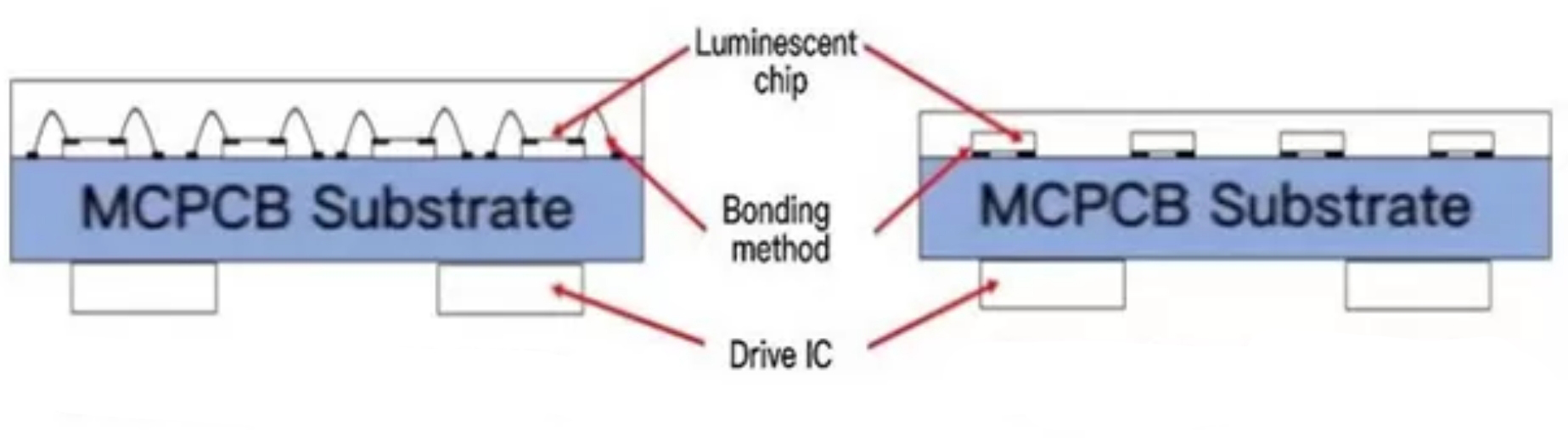

LED Chip Adopts Flip Chip Structure

Improved thermal management
Ftip chip structure
The light-emitting chip is 40% larger than the front-end structure
Heat reduction of about 30%

Higher Reliability And Durability

Simplified Structure:Flipping the LED chip onto the substrate reduces solder pins, streamlining the design.

Eliminates Connection Issues:Minimizes electrical/thermal problems caused by traditional pin connections.

Boosts Stability:Improved mechanical and thermal performance ensures long-term reliability.

Durable & Reliable:Enhanced design extends lifespan for demanding LED display applications.

Functional Advantages

Flip chip, heat reduction is about 30%.
No arsenic poison, environmentally friendly and safe
Violent content, strong contrast
Full flip chip process
Clear, vivid images

Improve Light Efficiency And Brightness

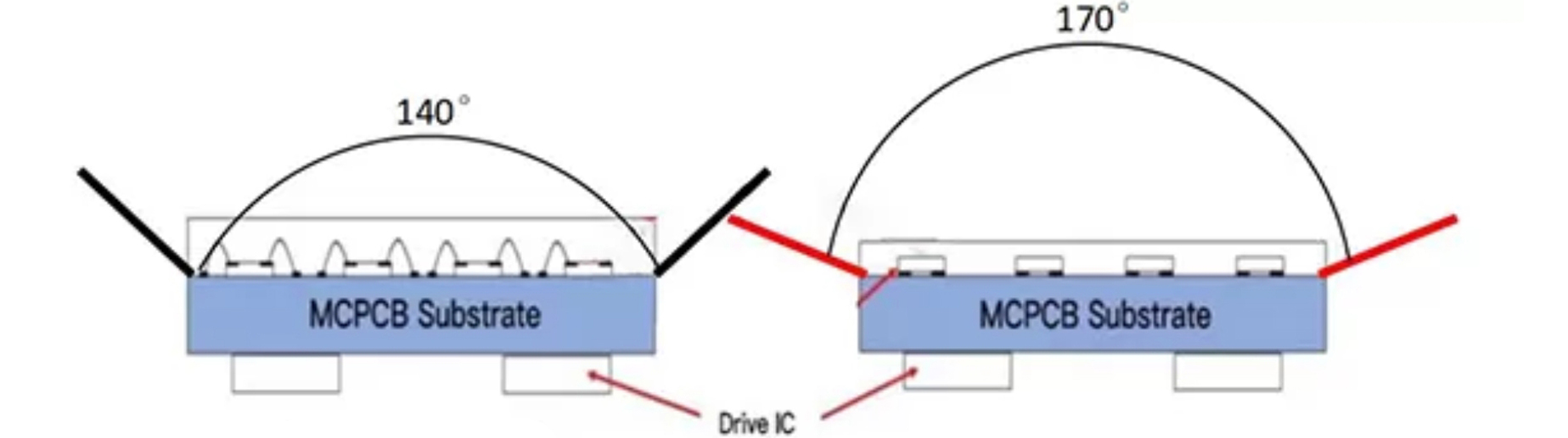

The full flip-chip process ensures that the light-emitting surface of the LED chip is not blocked by traditional solder joints, and the effective viewing angle is increased from

140° in the upright structure to 170° in the flip-chip structure. The improvement directly improves the overall brightness and color consistency of the display.

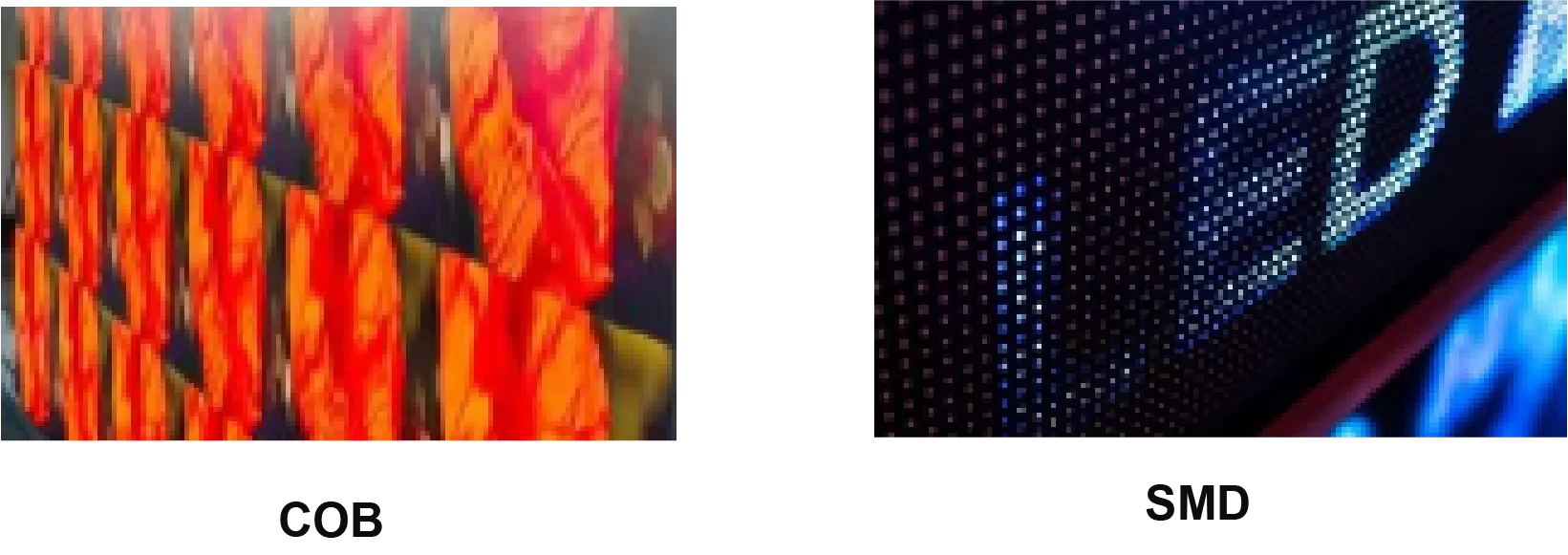

Formal LED COB

Flip-chip LED COB

Formal LED COB

Flip-chip LED COB

Eye Protection Design

Healthy Soft Light

Polymer-Filled COB Design：Reduces pixel gaps and flicker for stable, uniform visuals.
Soft, Glare-Free Glow：Gentle screen emission minimizes harsh glare and eye strain.
Reduce Eye Strain：Low-glare, flicker-free display eases discomfort during prolonged use.
Smoother Visuals：Enhanced image clarity and comfort for long-term viewing.
