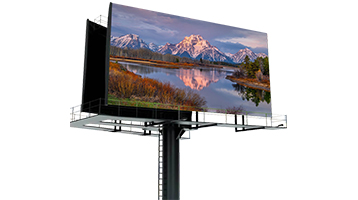

- Weather-resistant design for harsh outdoor environments
- High-brightness, high-contrast visuals for long-distance viewing
- Independently controlled LED matrix for dynamic color/animation
- Scalable resolution from basic text to 4K video compatible
- Customizable size, shape, pixel density, and remote software control
Tag:Outdoor LED Billboard、Outdoor Led Display、LED Advertising Screen
module
cupboard
Product Name | WL11- OD-P2.5 | WL11- OD-P3 | WL11- OD-P4 | WL11- OD-P5 | WL11- OD-P6 | WL11- OD-P8 | WL11- OD-P10 |
|---|---|---|---|---|---|---|---|
Pixel Pitch(mm) | 2.5 | 3 | 4 | 5 |
6.67 |
8
|
10 |
Pixel Density (pixels/sqm) | 160,000 | 105625 | 62,500 | 40,000 |
22,500
|
15,625
|
10,000
|
Cabinet Resolution | 384×384 | 312×312 | 240×240 | 192×192 |
144×144
|
120×120
|
96×96
|
Cabinet Dimension(mm) | 960×960 | 960×960 | 960×960 | 960×960 |
960×960
|
960×960
|
960×960
|
Lamp Type | SMD1415 | SMD1921 | SMD1921 | SMD2727 |
SMD3535
|
SMD3535
|
SMD3535
|
Module Size(mm) | 320×160 | 320×160 | 320×160 | 320×160 |
320×160
|
320×160
|
320×160
|
Module Resolution | 128×64 | 104×52 | 80×40 | 64×32 |
48×24
|
40×20
|
32×16
|
Optimum Viewing Distance(m) | 2.5-50 | 3-50 | 4-65 | 5-72 |
6-80
|
8-90
|
10-100
|
Horizontal Viewing Angle | ≥160° | ≥140° | ≥140° | ≥140° |
≥140°
|
≥140°
|
≥140°
|
Vertical Viewing Angle | ≥140° | ≥120° | ≥120° | ≥120° |
≥120°
|
≥120°
|
≥120°
|
Control System | Sychronous Control | Sychronous Control | Sychronous Control | Sychronous Control |
Sychronous Control
|
Sychronous Control
|
Sychronous Control
|
Average Power Consumption(w/m²) | 400 | 420 | 385 | 385 |
320
|
320
|
320
|
Max Power Consumption(w/m²) | 800 | 1350 | 1150 | 1150 |
1000
|
1000
|
1000
|
Drive Mode | 1/16 | 1/16 | 1/10 | 1/8 |
1/6
|
1/5
|
1/2
|
Refresh Rate | 1920Hz/3840Hz | 1920Hz/3840Hz | 1920Hz/3840Hz | 1920Hz/3840Hz |
1920Hz/3840Hz
|
1920Hz/3840Hz
|
1920Hz/3840Hz
|
Brightness(cd/m²) | 4500 | 4500 | 4500 | 4500 |
4500
|
4500
|
4500
|
Operating Temp(℃) | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ | -20℃~60℃ |
-20℃~60℃
|
-20℃~60℃
|
-20℃~60℃
|
Storage Temp(℃) | -25℃~60℃ | -25℃~60℃ | -25℃~60℃ | -25℃~60℃ |
-25℃~60℃
|
-25℃~60℃
|
-25℃~60℃
|
Life Time | 75,000 ~100,000hr | 75,000 ~100,000hr | 75,000 ~100,000hr | 75,000 ~100,000hr | 75,000 ~100,000hr | 75,000 ~100,000hr | 75,000 ~100,000hr |

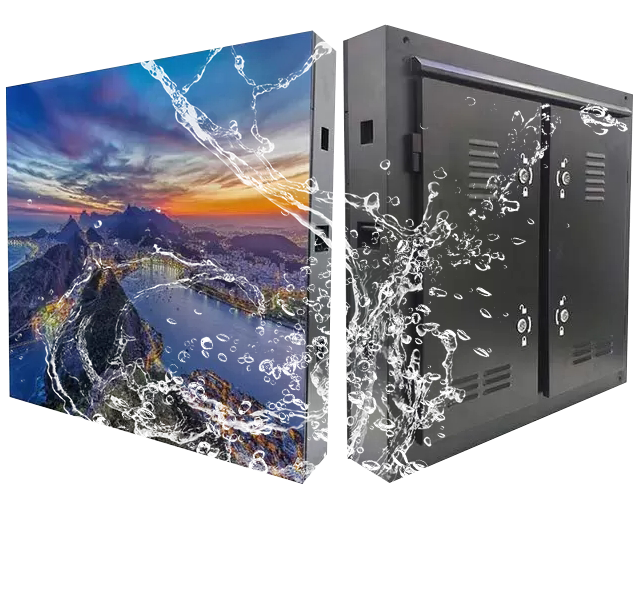

Our lP65 waterproof LED modules offer exceptional protection against extreme weather, ensuring stable performance and
longevity. The fanless power supply with waterproof seals further auarantees durability and reliable operation
Using the industry-leading 12-bit three-dimensional highfrequency pulse circuit, itcan obtain 4096 gray levels, which is 4 times that of ordinary projectors. A smootherand more delicate image effect can be obtained, and the unique step transitionphenomenon of digital images can be completely eliminated.

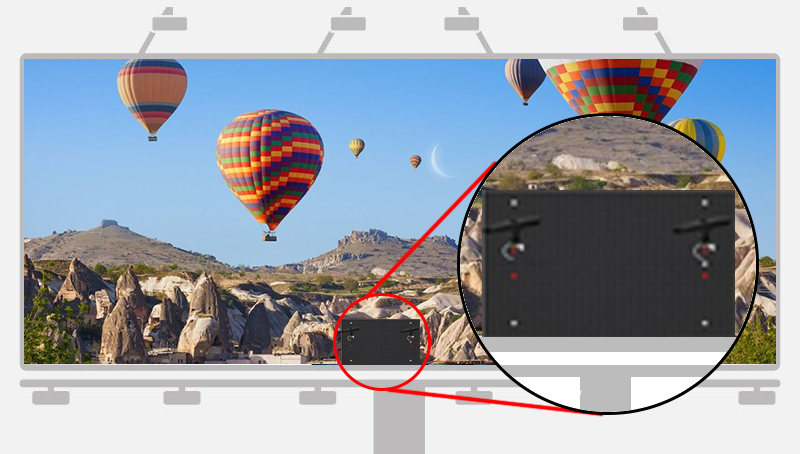

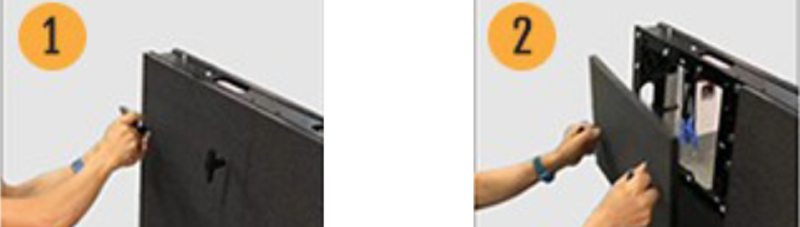

Dual service mode of front and rear design to save you Maintenance Cost.The LED panel can be assemble anddisassemble easily and quickly.
OD Series is easily visibleHOD outdoor LED displays up to 6000 cdm2 brightness allows for placement in any lightingconditionis easily visible in daylight and under bright sunlight. Look for displays with a highbrightness rating to ensure good visibility. in daylight and under bright sunlight. Look for displays with a highbrightness rating to ensure good visibility.

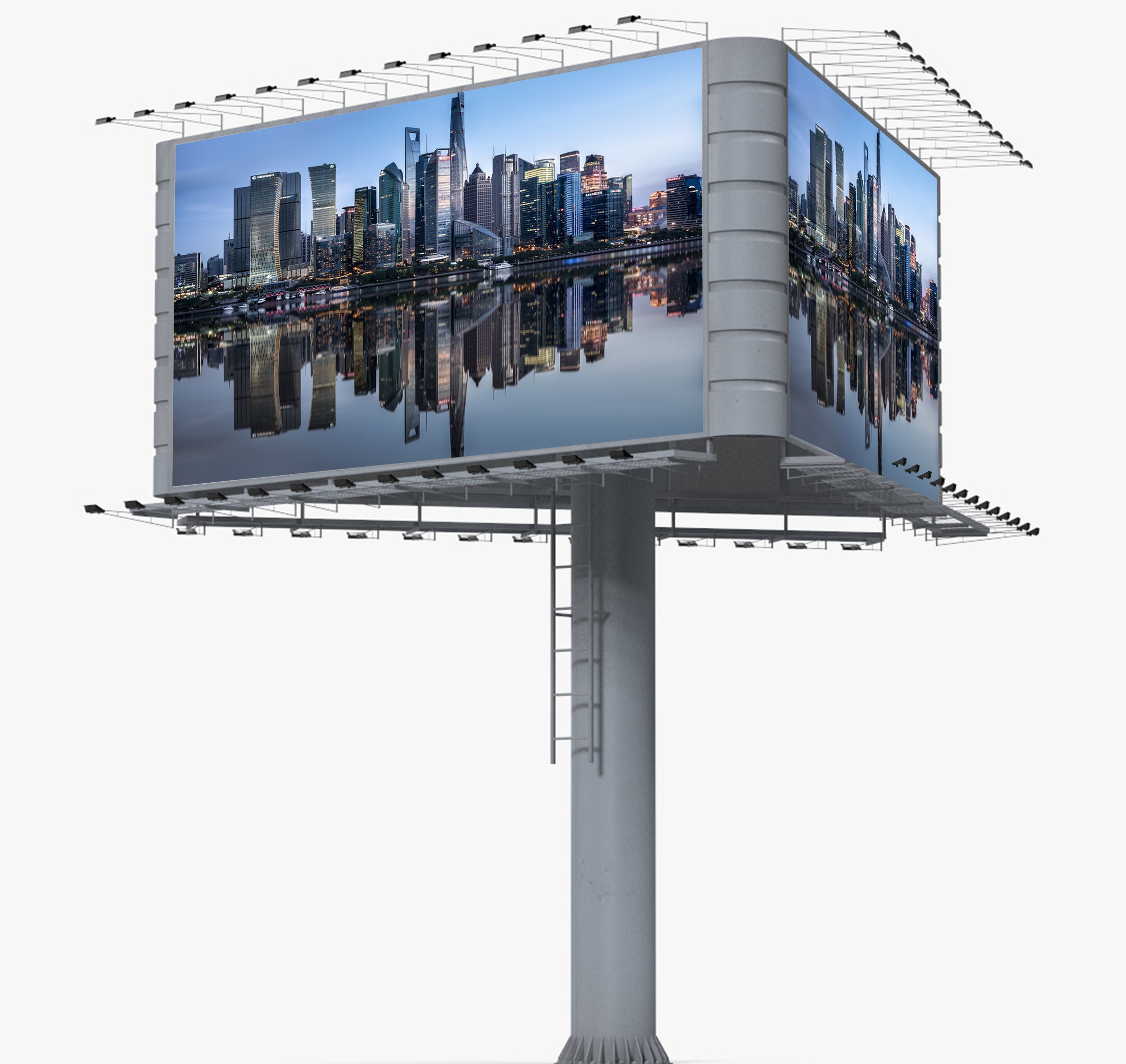

A wide viewing angle of 160 horizontal and 140° in vertical which reaches more viewers. Thepicture quality remains seamless in all direction and at a distance, presenting all viewers the samehighly quality outputs. This makes it suitable for large gathering and outdoor advertisement.

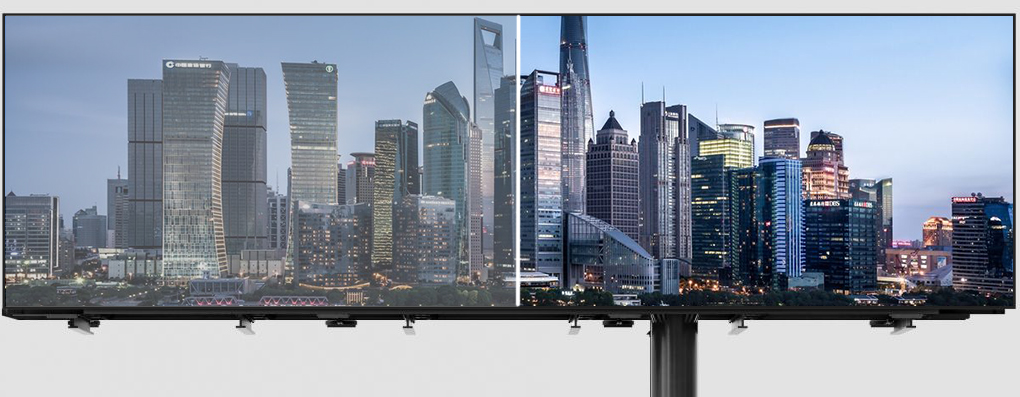

The contrast ratio of OD outdoor LED display are generallybetter,against a bright background
Low gray scale
Commercials
Commercials
Commercials
