LED Indoor Rental Display

Model:WL31-IR-P1.9H/IR-P2.6H/IR-P3.9H

- Modular Design, Effortless Setup
- Ideal for Events & Exhibitions
- Vivid Clarity, Dynamic Colors
- Boosts Audience Engagement
- Adaptable to Any Venue

Tag:Ultra Fine HD LED Screen 、LED Wall Rental、 HD LED Display

Get a Quote Download

WL31-IR-P1.9H/IR-P2.6H/IR-P3.9H

Wide Viewing Angle

± 160°view angle brings a truly amazing image with highly color consistency from any angles.

WL31-IR-P1.9H/IR-P2.6H/IR-P3.9H

Cabinet Weight

Cabinet weight:2.9kg/4.5kg/5.8kg Cabinet is lighter and slimmer, it reduces the transportation cost and installation labor cost

Features Video Specifications Advantages Accessories

More Feature Are...

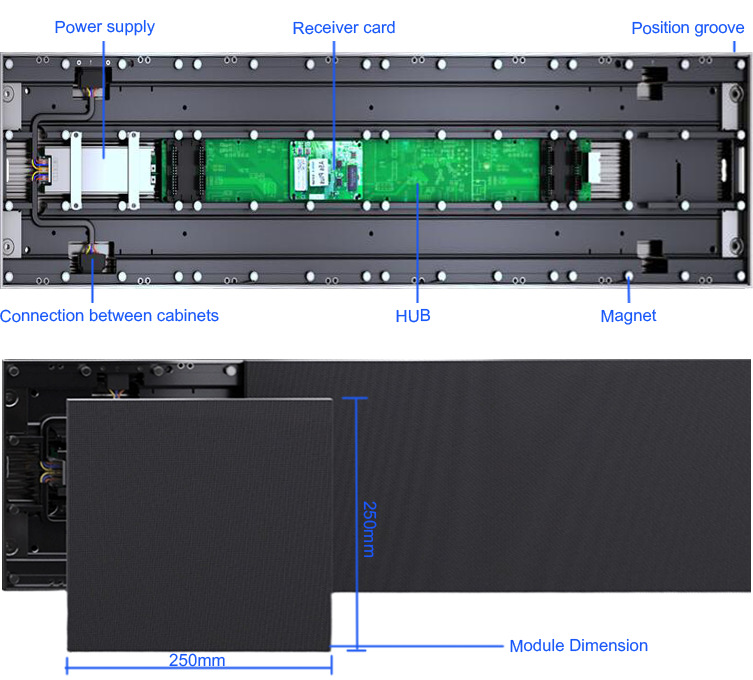

High contrast corrugated light

The design is simple, and no cables are required between cabinets.

Absorption mask achieves high contrast

Lighter and thinner, reducing transportation and installation labor costs.

Cabinet weight: 2.9kg/4.5kg/5.8kg

Modules and cabinets are adsorbed by multiple magnetic columns

Full frontal access Maintenance is easier

Supports hot plugging and wireless connection

Video

Unboxing Rental LED
LED installation demonstration
LED packaging and transportation display

Specifications

Cabinet Specs

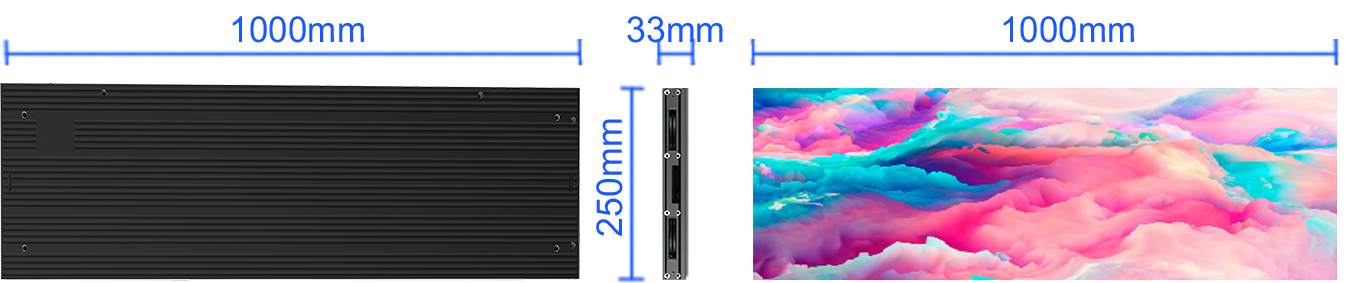

The screen size can be customized according to the 250x250mm module: 750x250mm; 1000x250mm:

12500x250mm, a variety of sizes to meet your screen size needs.


Item Number

WL31-IR-P1.9H

WL31-IR-P2.6H

WL31-IR-P3.9H

Pixel Pitch

1.953mm

2.604mm

3.91mm

Pixel Density

262144pixels/sqm

147,456pixels/sqm

65,536pixels/sqm

LED Arrangement

SMD1515

SMD1921/2121/1515

SMD1921/2121

Module Resolution

128x128pixels

96x96pixels

64x64pixels

Panel Resolution

512x128pixels

384x96pixels

256x64pixels

Module Dimension

250x250mm

250x250mm

250x250mm

Module Resolution

512x128pixels

384x96pixels

120(W)x135(H)

Panel Dimension

1250/1000/750x250mm

1250/1000/750x250mm

1250/1000/750x250mm

Panel Weight

20kg

20kg

20kg

Brightness Level

800-1,000nits(SMD2121/1515)

- 3000-4500nits(SMD1921)

800-1,000nits(SMD2121/1515)

- 3000-4500nits(SMD1921)

800-1,000nits(SMD2121/1515)

- 3000-4500nits(SMD1921)

Max Power Consumption

480W/㎡

480W/㎡

480W/㎡

Ave Power Consumption

150W/㎡

150W/㎡

150W/㎡

Visual View Angle

160°/160°

160°/160°

160°/160°

Operating Power Source

90-264V/ AC 50-60Hz

90-264V/ AC 50-60Hz

90-264V/ AC 50-60Hz

Operating Temperature

﹣20~ +70

﹣20~ +70

﹣20~ +70

Refresh Rate

≤3840Hz(Configurable)

≤3840Hz(Configurable)

≤3840Hz(Configurable)

Protecting Rating

IP20

IP20

IP20

Signal Input Source

S-video,VGA,DVI,HDMI,SDI

S-video,VGA,DVI,HDMI,SDI

S-video,VGA,DVI,HDMI,SDI

Download Brochure

We Can't Wait to Meet You!

No matter your application, our team of experts can deliver a turn-key visualization solution and world-class support optimized for your needs.

Advantages of LED Indoor Rental Display

Extreme Color Performance

Clear & Real Picture Quality

  • Wider color space
  • Higher color depth
  • Wider brightness range
  • More vivid exquisite color

Integrated Modularized Design

  • Reinforced Welding, Enhanced Thrust
  • Impact-Resistant Copper Integrity
  • Jump Wire-Free Circuit Maintenance
  • EMC-Compliant Board Architecture
  • LED Rental-Specific Structural Optimization


Anti-Collision Design

Automatic telescopic corner protection plates can slide smoothly without manual switch

Functional Advantages

  • Strong compatibility
  • More size options
  • 45° angle installation (optional)
  • Easy installation
  • Aluminum profile
  • Lightweight cabinet

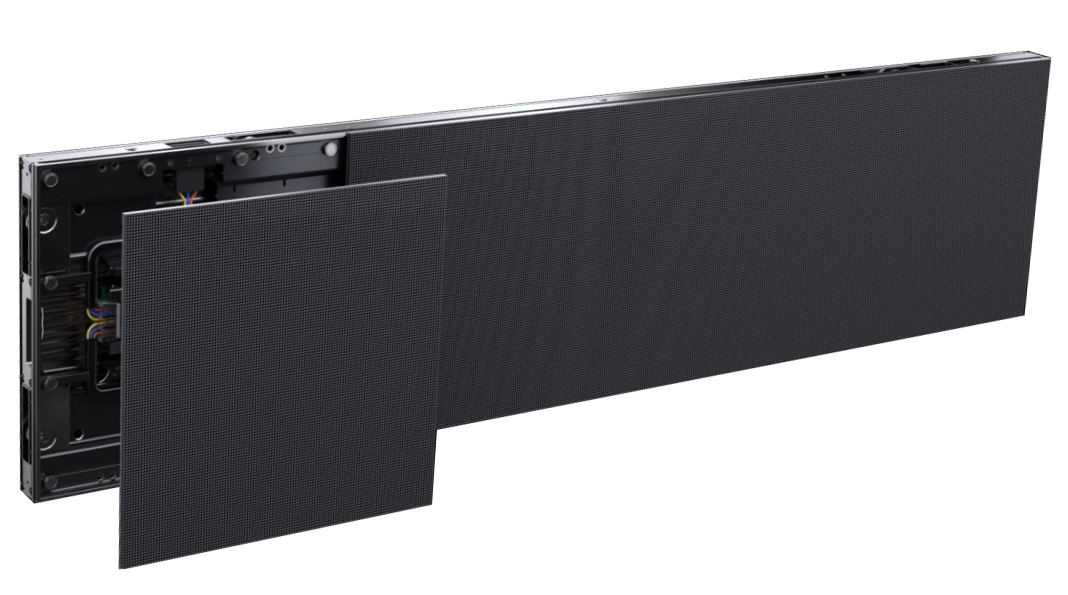

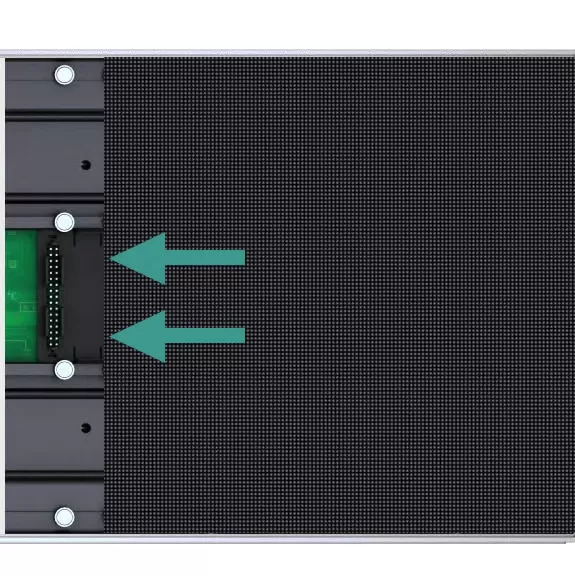

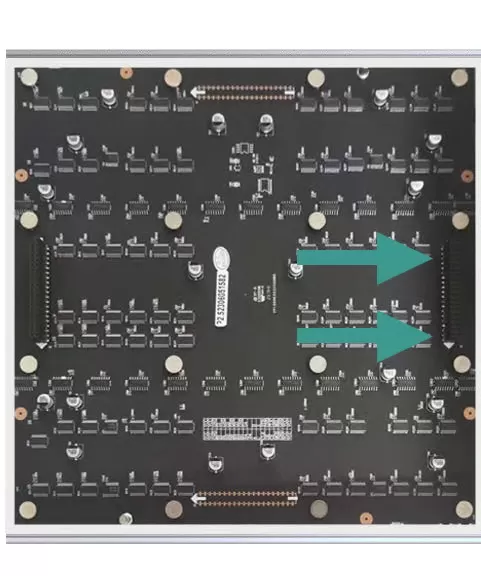

Hot Swapping · Cableless Connection

Hardware connection between modules and cabinet is more stable Aluminum cabinet has better heat dissipation performance


Module


Cabinet

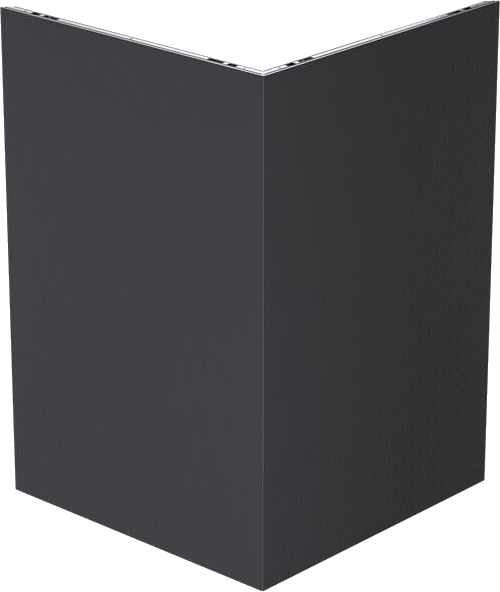

45° Bevel Edge Splicing

LED modules are interchangeable for common use no matter left/

right/up/down, 45° Bevel edge splicing makes the flatness, reliability.


Easy to Install

Our LED are required to be easily installed, disassembled,

and transported repeatedly, and the staffcan quickly complete

the work, reducing the labor cost of customers;

Refresh Rate


Gray scale


High Refresh Rate

Low Refresh Rate

High Grey Scale

Low Grey Scale

Installation Method

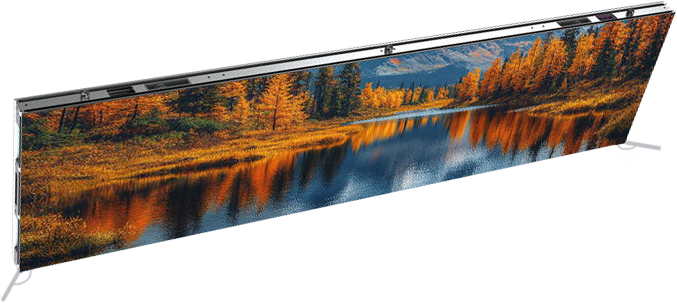

Hanging


Wall mounting


Variety of shapes

Accessories

Related Products

Indoor Rental LED Display
Indoor Rental LED Display
WL31-IR-P1.9H/IR-P2.6H/IR-P3.9H
Indoor Rental LED Display
Indoor Rental LED Display
TW21-IR-P2.6/IR-P2.9/IR-P3.9/IR-P4.8
LED Outdoor Rental Display
LED Outdoor Rental Display
WL21-OR-P2.9,TW21-OR-P3.9,TW21-OR-P4.8

Related Cases

A Concert in Southeast Asia

A Concert in Southeast Asia

Concert

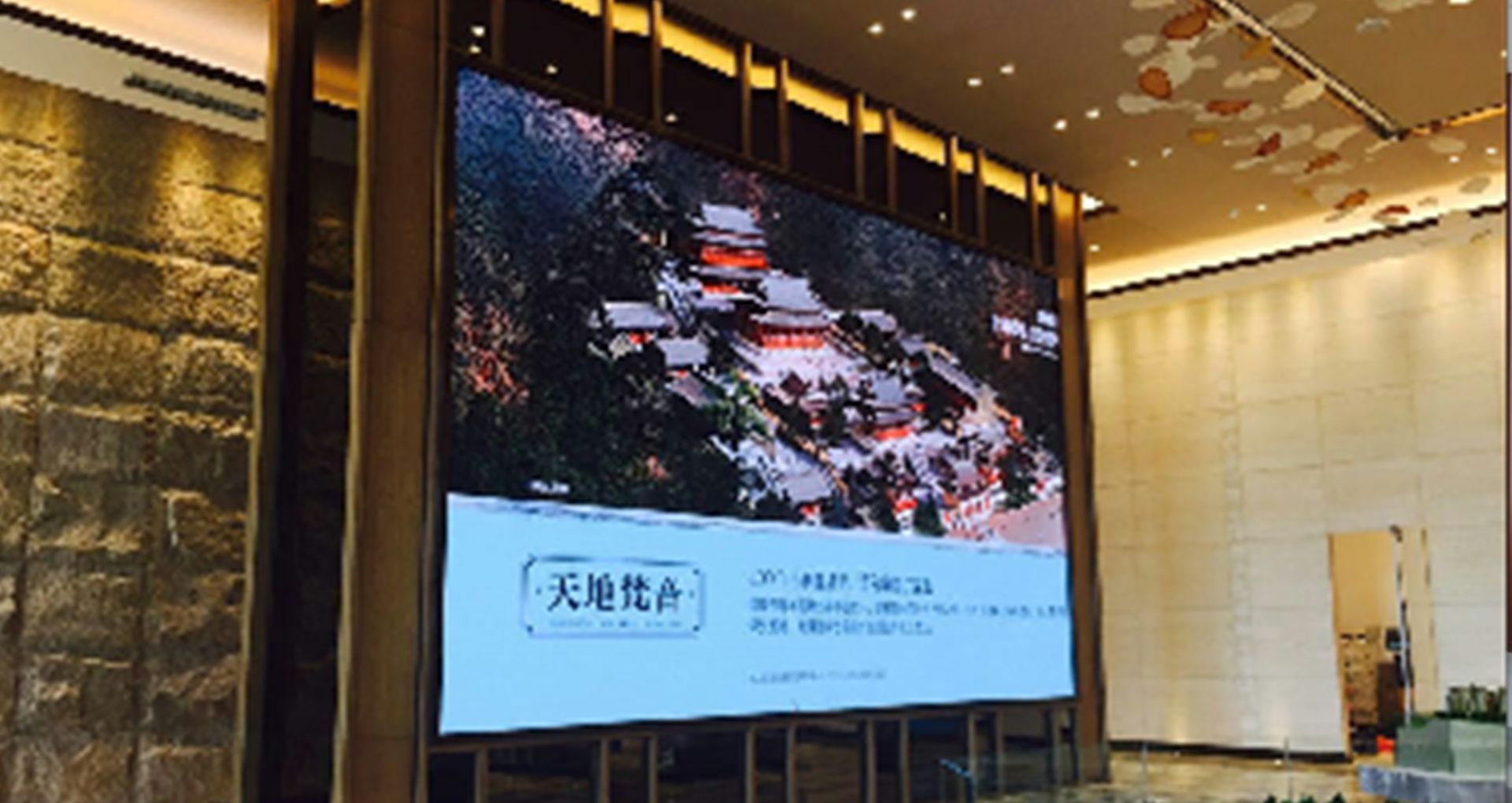

Advertising Screen in a Hotel Lobby

Advertising Screen in a Hotel Lobby

Business

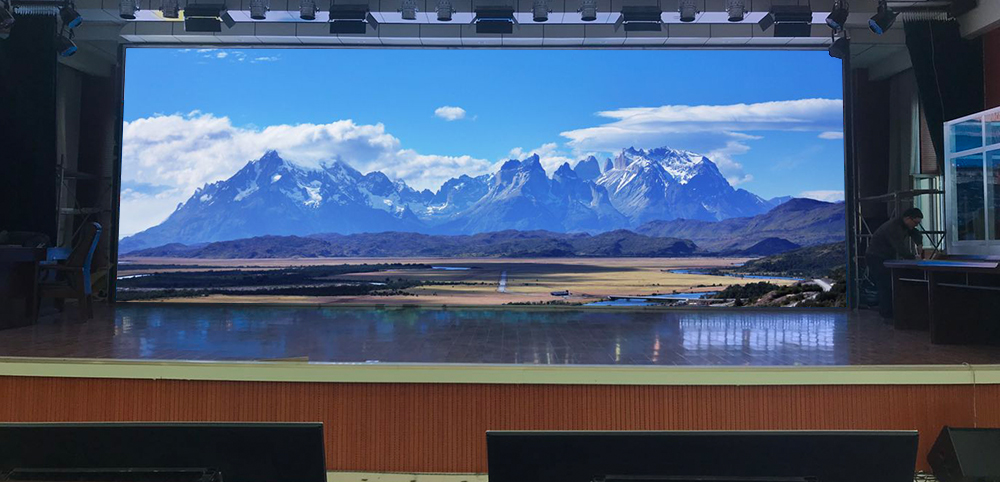

Stage Case in a City in Indonesia
