High-impact Outdoor LED Display: Ensuring Visibility in Sunlight

LED High Brightness Qutdoor Display

Model: WL31-HOD Series

- Weather-resistant design for extreme outdoor durability
- High-brightness, high-contrast visuals with long-distance visibility
- Individually controlled LED matrix for dynamic color/animations
- Scalable resolution from basic text to HD/4K video compatibility
- Customizable size, shape, pixel density, and remote software control

Tag:Outdoor LED Billboard、Outdoor Led Display、LED Advertising Screen

Get a Quote Download

Features Video Specifications Advantages Accessories

More Feature Are...

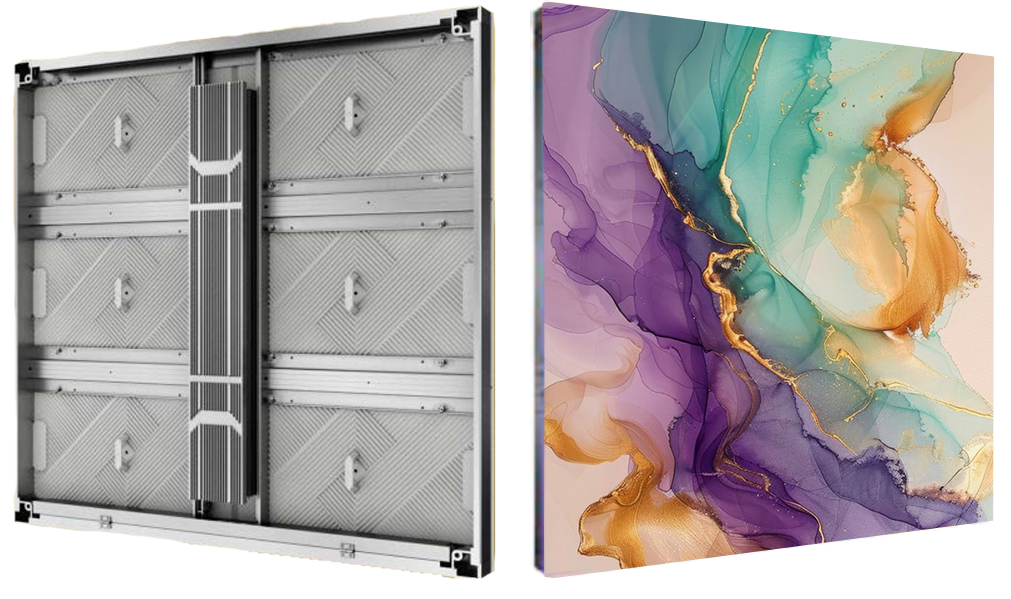

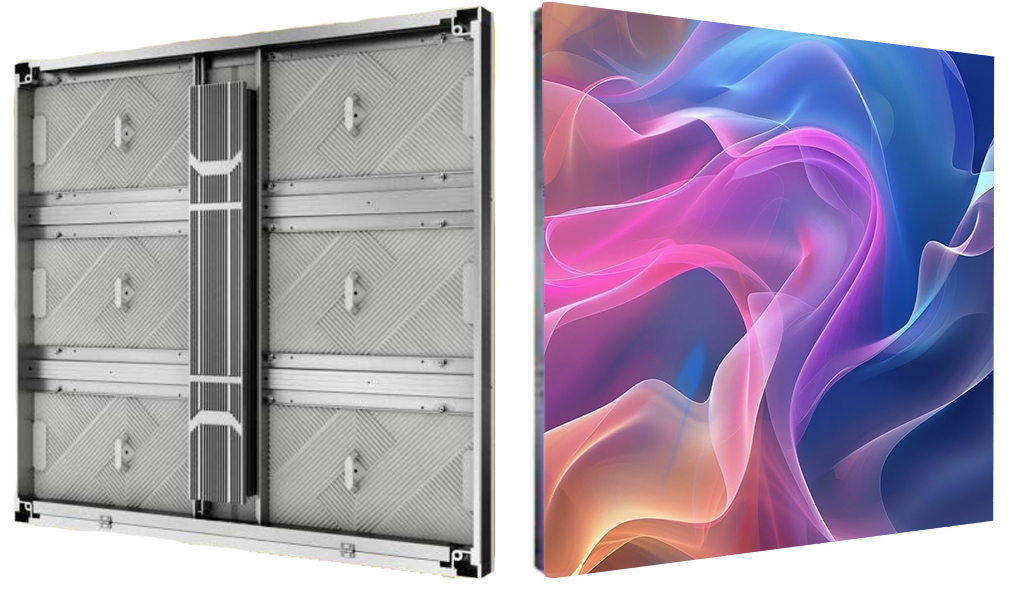

All-aluminum bottom shell, high ignition point, high fire protection leve

Specially designed waterproof rubber ring, multi-layer waterproof protection, protection level up to IP65

Divided voltage power supply design, low heat and long service life

Light and thin design

Innovatively designed mask with a brim height of 2.5mm to improve contrast;

Hard connection design, high stability.

Innovative circuit design, high brightness efficiency

Made of all-aluminum material, ultra-high-grained heat dissipation rib design, high heat dissipation efficiency;

Video

Unboxing Rental LED

LED installation demonstration

LED packaging and transportation display

Specifications

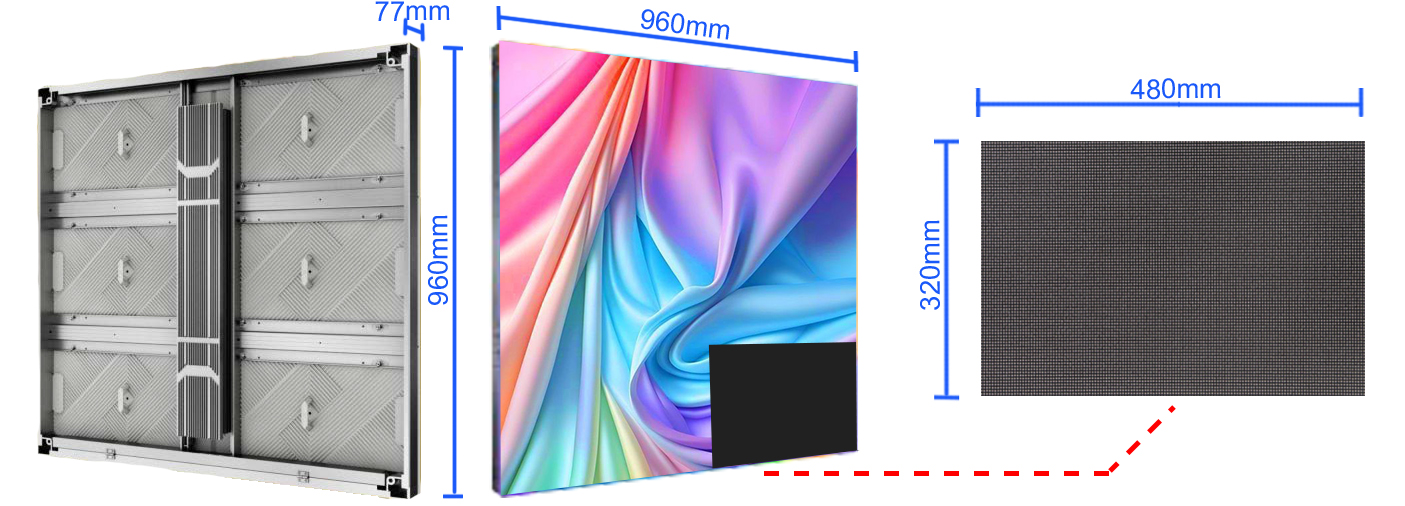

Cabinet and Module Specifications

Model	WL31-HOD-P5.7E	WL31-HOD-P6.67E	WL31-HOD-P8E	WL31-HOD-P10E
Pixel Pitch(mm)	5.7mm	6.67mm	8mm	10mm
LED Configuration	SMD2727	SMD2727	SMD2727	SMD2727
Pixel Density	30625dot/m²	22500dot/m²	15625dot/m²	10000dot/m²
Module size	480*320mm	480*320mm	480*320mm	480*320mm
Module Resolution	84*56 dot	72*48 dot	60*40 dot	48*32dot
Cabinet Size	96096077mm	96096077mm	96096077mm	96096077mm
Cabinet Resolution	168*168dot	144*144dot	120*120dot	96*96dot
Cabinet Weight	28kg	28kg	28kg	28kg
IP Rating ( front/back)	IP65	IP65	IP65	IP65
Brightness Intensity	7500 cd	9000 cd	10000 cd	10000 cd
Viewing Angle (H/V)	140°/140°	140°/140°	140°/140°	140°/140°
View Distance	＞5m	＞5m	＞5m	＞5m
Gray Scale	14bit	14bit	14bit	14bit
Display Scale	16.7M	16.7M	16.7M	16.7M
Brightness Adjustment	0-100 levels adjustable	0-100 levels adjustable	0-100 levels adjustable	0-100 levels adjustable
Max.Power Consumption	800W/㎡	800W/㎡	800W/㎡	800W/㎡
Ave.Power Consumption	320W/㎡	320W/㎡	320W/㎡	320W/㎡
Drive Mode	1/7S	1/6S	1/4S	1/2S
Refresh Frequency	≥3840HZ	≥3840HZ	≥3840HZ	≥3840HZ
Gamma Correction	﹣5.0~+5.0	﹣5.0~+5.0	﹣5.0~+5.0	﹣5.0~+5.0
Environmental	OUTDOOR	OUTDOOR	OUTDOOR	OUTDOOR
Control Mode	Synchronous display with control PC by DVI Composite	Synchronous display with control PC by DVI Composite	Synchronous display with control PC by DVI Composite	Synchronous display with control PC by DVI Composite
Support Input	Vido,Component,VGA,DV I,H DMI,HD_SDI	Vido,Component,VGA,DV I,H DMI,HD_SDI	Vido,Component,VGA,DV I,H DMI,HD_SDI	Vido,Component,VGA,DV I,H DMI,HD_SDI
Operation Power	AC100~240 50/60HZ	AC100~240 50/60HZ	AC100~240 50/60HZ	AC100~240 50/60HZ
Operating Temperature	﹣20℃~+50℃	﹣20℃~+50℃	﹣20℃~+50℃	﹣20℃~+50℃
Operating Humidity	10~95% RH	10~95% RH	10~95% RH	10~95% RH

Download Brochure

We Can't Wait to Meet You!

No matter your application, our team of experts can deliver a turn-key visualization solution and world-class support optimized for your needs.

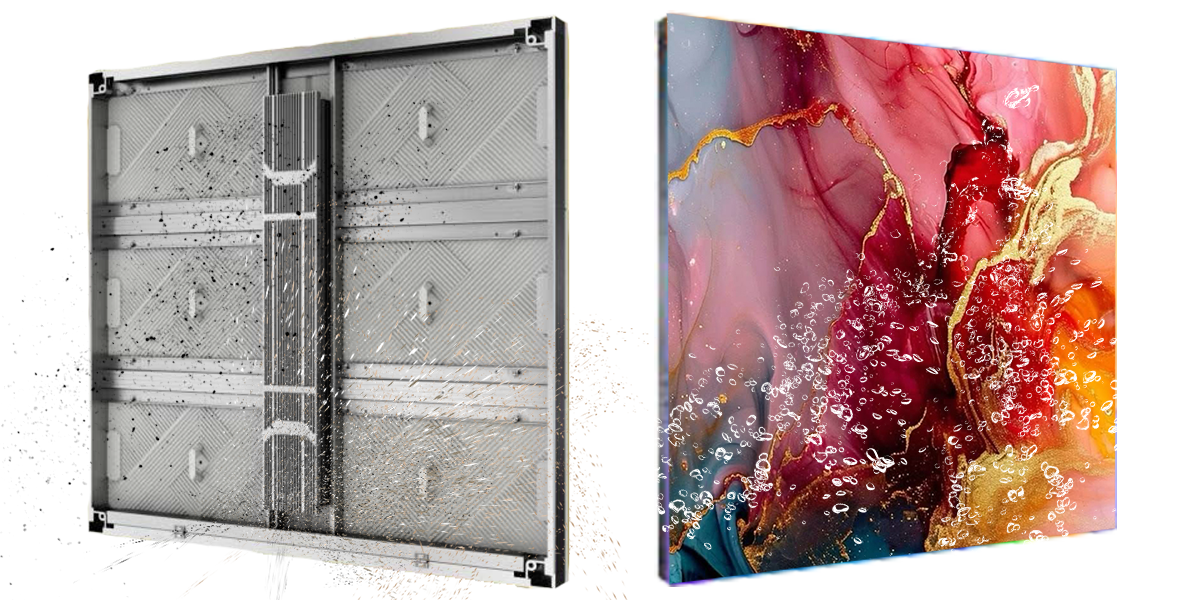

All-Weather Durability

Our lP65 waterproof LED modules offer exceptional protection against extreme weather, ensuring stable performance and

longevity. The fanless power supply with waterproof seals further auarantees durability and reliable operation

Functional Advantages

Protection level up to IP65
Made of all-aluminum material
Low heat dissipation, long service life
Hard connection design, high stability
Can achieve 10,000 level brightness display
Lightweight design

Extreme Color Performance

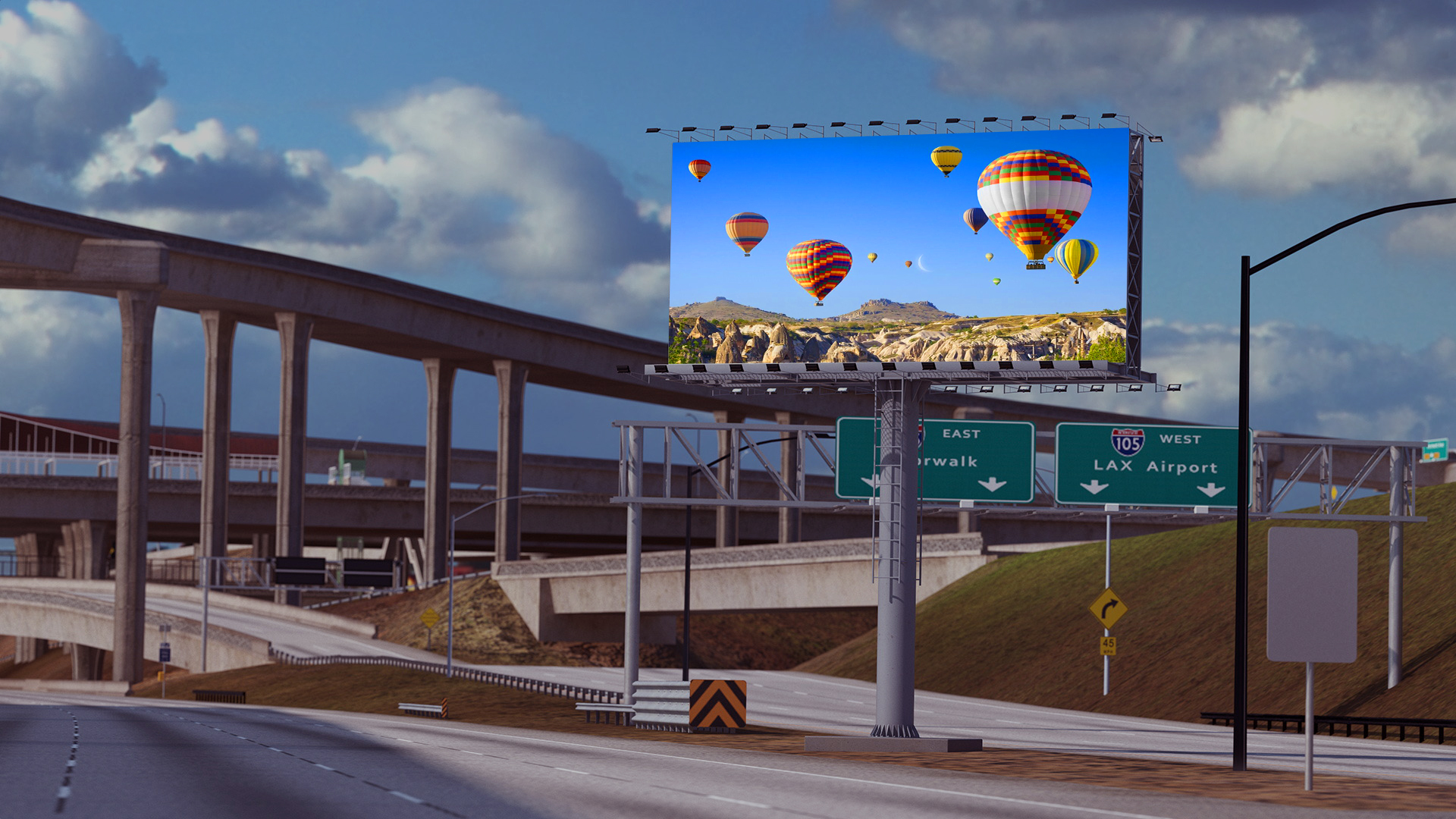

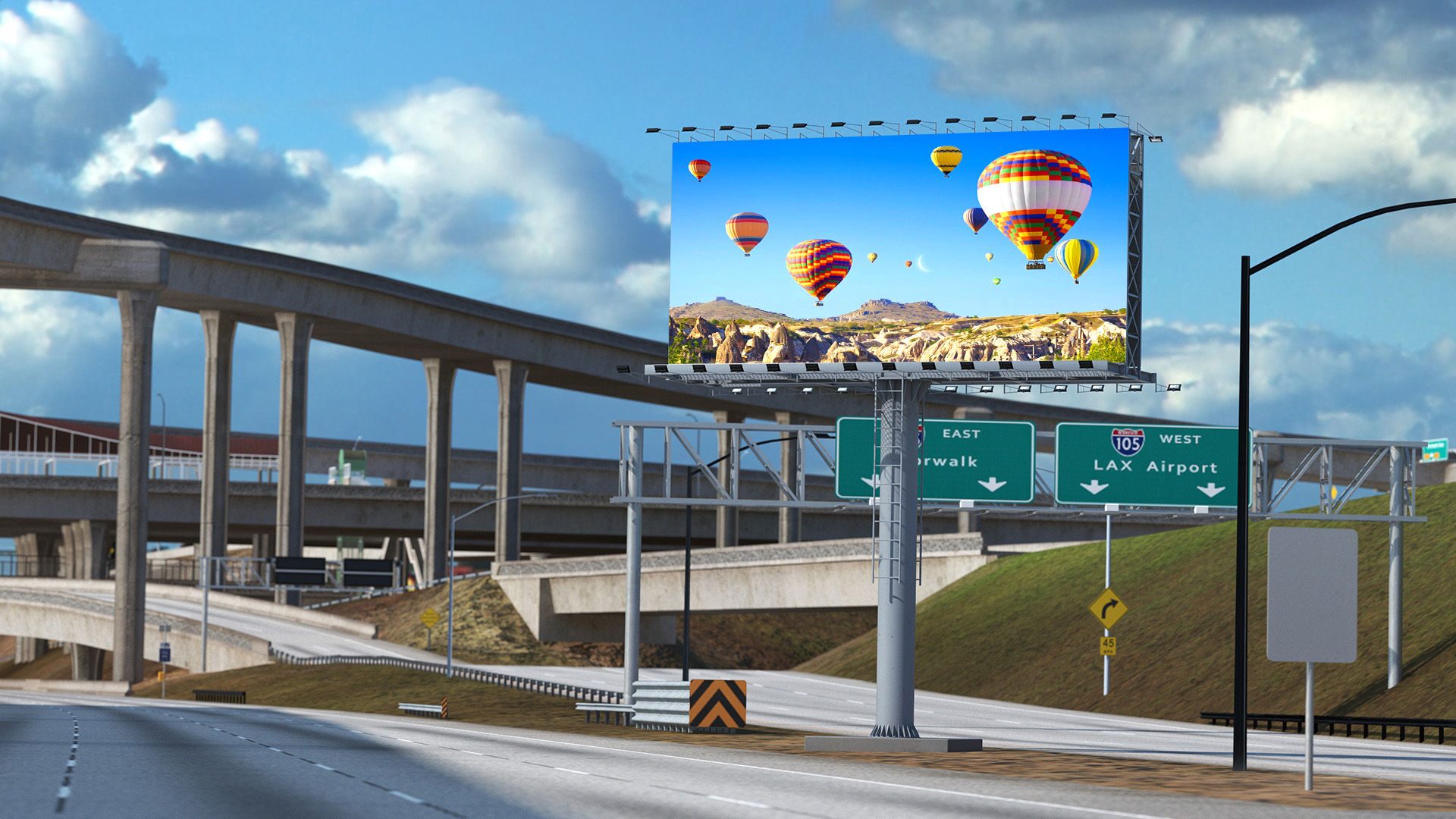

High Brightness

OD series is clearly visible. With brightness up to 6000 cdm², HOD outdoor LED display can be placed in any lighting conditions. Whether in daylight or bright sunlight, it is clearly visible.

Wide Viewing Angle

A wide viewing angle of 160° horizontal and 140° in vertical which reaches more viewers. Thepicture quality remains seamless in all direction and at a distance, presenting all viewers the samehighly quality outputs. This makes it suitable for large gathering and outdoor advertisement.

Better Contrast Ratio

The contrast ratio of HOD outdoor LED display are generally better,against a bright background

Low gray scale

High gray scale

24 hours * 7days

Using the industry-leading 12-bit three-dimensional highfrequency pulse circuit, itcan obtain 4096 gray levels, which is 4 times that of ordinary projectors. A smootherand more delicate image effect can be obtained, and the unique step transitionphenomenon of digital images can be completely eliminated.

Front and Rear Maintenance

Dual service mode of front and rear design to save you Maintenance Cost.The LED panel can be assemble anddisassemble easily and quickly.

Insert into the hole and easily remove the module

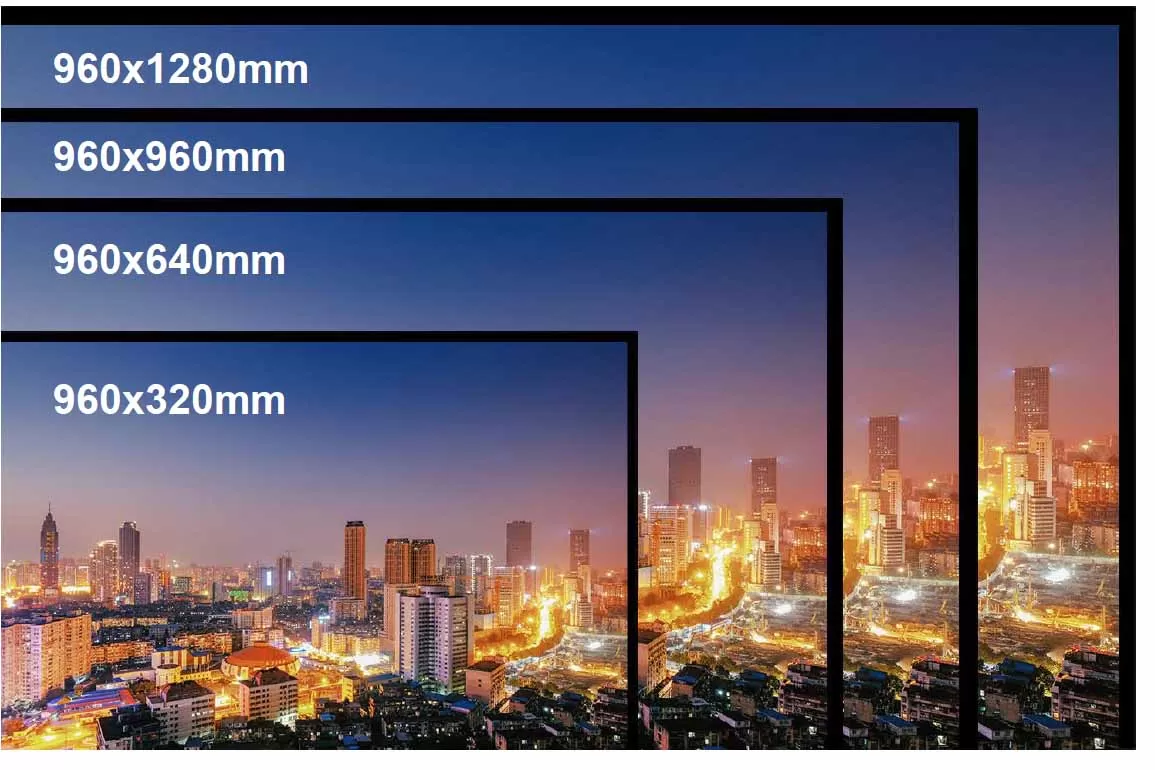

Flexible Size

The HOD series has different sizes to choose from, which can meet the size requirements of different venues.

Excellent Display Effect

Broadcast-level color gamut, intelligently adjustable color temperature, no fatigue when watching, ultra-high refresh rate, low brightness and high gray.

Ultra Slim And Lightweight Design

The ultra-thin and lightweight design simplifies installation and maintenance and can be operated by one person. Both the front and rear can be accessed.
