- Modular Lightweight Panels, Swift Assembly
- Exhibition-Grade Clarity & Vivid Colors
- Optimized Audience Engagement & Immersion
- Versatile Setup for Temporary Installations
Tag:Stage Led Screen、Church Led、Screen Concert Led Screen

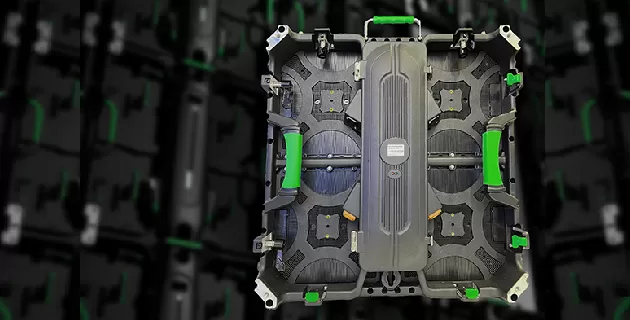

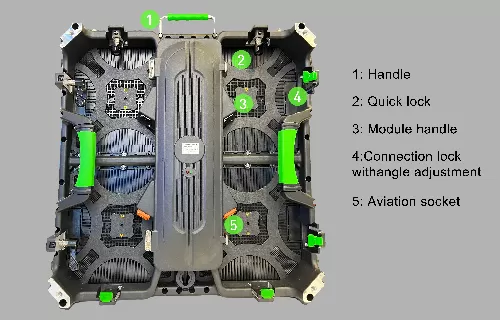

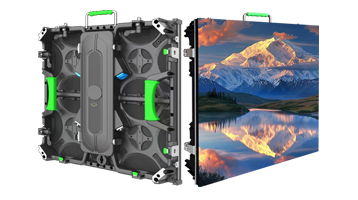

Each cabinet (including all parts) weighs approximately 7.5 kg and can be installed more quickly and easily with the help of handles and quick locks.
Specification | WL21-IR-P2.6 | WL21-IR-P2.9 | WL21-IR-P3.9 | WL21-IR-P4.8 |
|---|---|---|---|---|
Pixel Pitch(mm) | 2.604mm | 2.976mm | 3.91mm |
4.81mm
|
Pixel Density | 147,456 | 112,896 | 65,536 |
43,264
|
Cabinet Resolution | 192×192 | 168×168 | 128×128 |
104×104
|

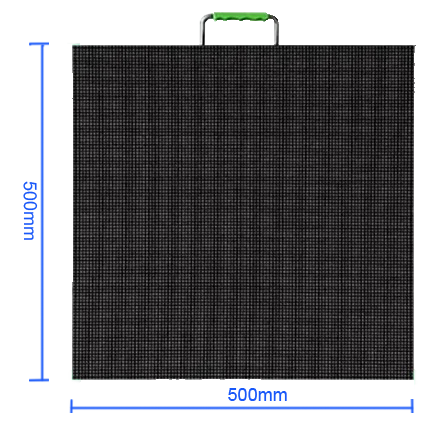

Cabinet Dimension | 500x500(mm) | 500x500(mm) | 500x500(mm) |
500x500(mm)
|
Module Size(mm) | 250×250(mm) | 250×250(mm) | 250×250(mm) |
250×250(mm)
|
Module Resolution(mm) | 96x96 | 84x84 | 64x64 |
52x52
|
Optimum Viewing Distance | 3m-38m | 3m-50m | 3m-60m |
4m-70m
|
Horizontsl Vcwing Anglc | ≥140° | ≥160° | ≥160° |
≥160°
|
Vertical Viewing Angle | ≥120° | ≥160° | ≥120° |
≥160°
|
Curwe | 0-90° | 0-90° | 0-90° |
0-90°
|
Control System | Sonchronous Control | Sonchronous Control | Sonchronous Control |
Sonchronous Control
|
Awerage Power Consumption | 147w/m² | 147w/m² | 147w/m² |
147w/m²
|
Max Power Consumption | 520w/m² | 520w/m² | 520w/m² |
520w/m²
|
Drive Mode | 1/32 | 1/28 | 1/16 |
1/13
|
Refresh Rate | 1920Hz/3840Hz | 1920Hz/3840Hz | 1920Hz/3840Hz |
1920Hz/3840Hz
|
Brightness | 600cd/m² | 600cd/m² | 600cd/m² |
600cd/m²
|
Frame Rate | 50/60 | 50/60 | 50/60 |
50/60
|
Brightness Adjustment | 16 levels | 16 levels | 16 levels |
16 levels
|
Cabinet Weight | 50/60 | 50/60 | 50/60 |
50/60
|
Frame Rate | 7KG±0.05KG | 7KG±0.05KG | 7KG±0.05KG |
7KG±0.05KG
|
IP Level | IP40 | IP40 | IP40 |
IP40
|
Operating Temp(℃) | ﹣20℃~60℃ | ﹣20℃~60℃ | ﹣20℃~60℃ |
﹣20℃~60℃
|
﹣20℃~60℃ | ﹣25℃~60℃ | ﹣25℃~60℃ | ﹣25℃~60℃ |
﹣25℃~60℃
|
Life Time | 75,000~100,000hr | 75,000~100,000hr | 75,000~100,000hr |
75,000~100,000hr
|

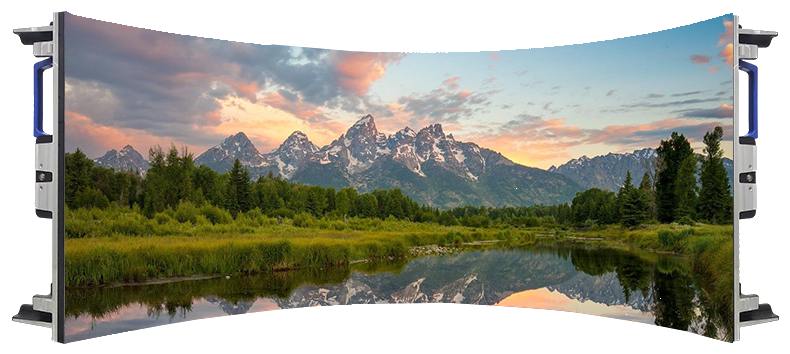

Clear & Real Picture Quality

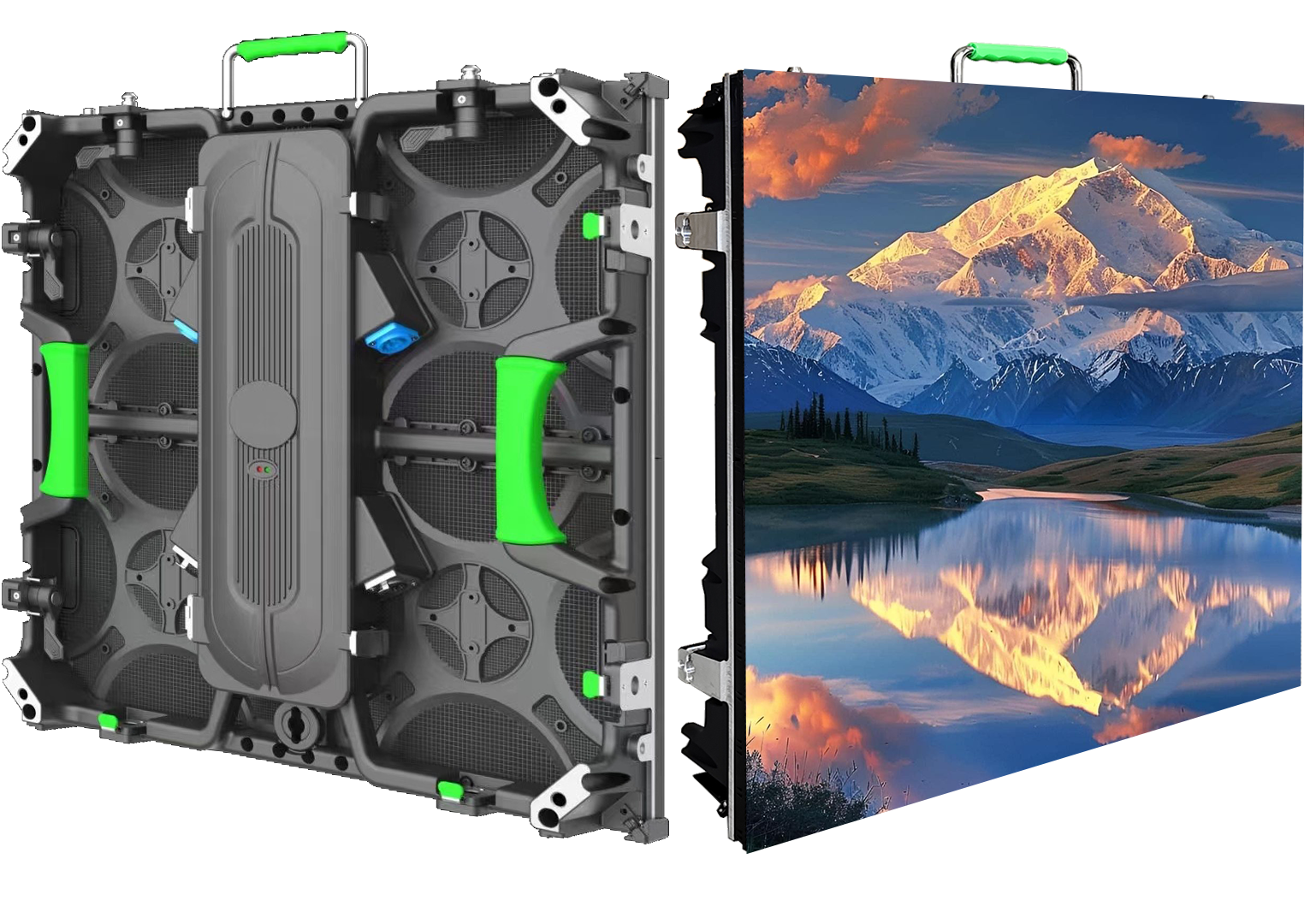

Integrated Modularized Design: Large solder pad, strong thrust, suitable for LED rental lamp beads, no copper peeling during soldering, no jumper required for maintenance, and the circuit board is designed according to EMC standards.
Anti-Collsion Design:Automatic telescopic corner protection plates can slide smoothly without manual switch
Wide Viewing Angle: ± 160°view angle brings a truly amazing image with highly color consistency from any angles.

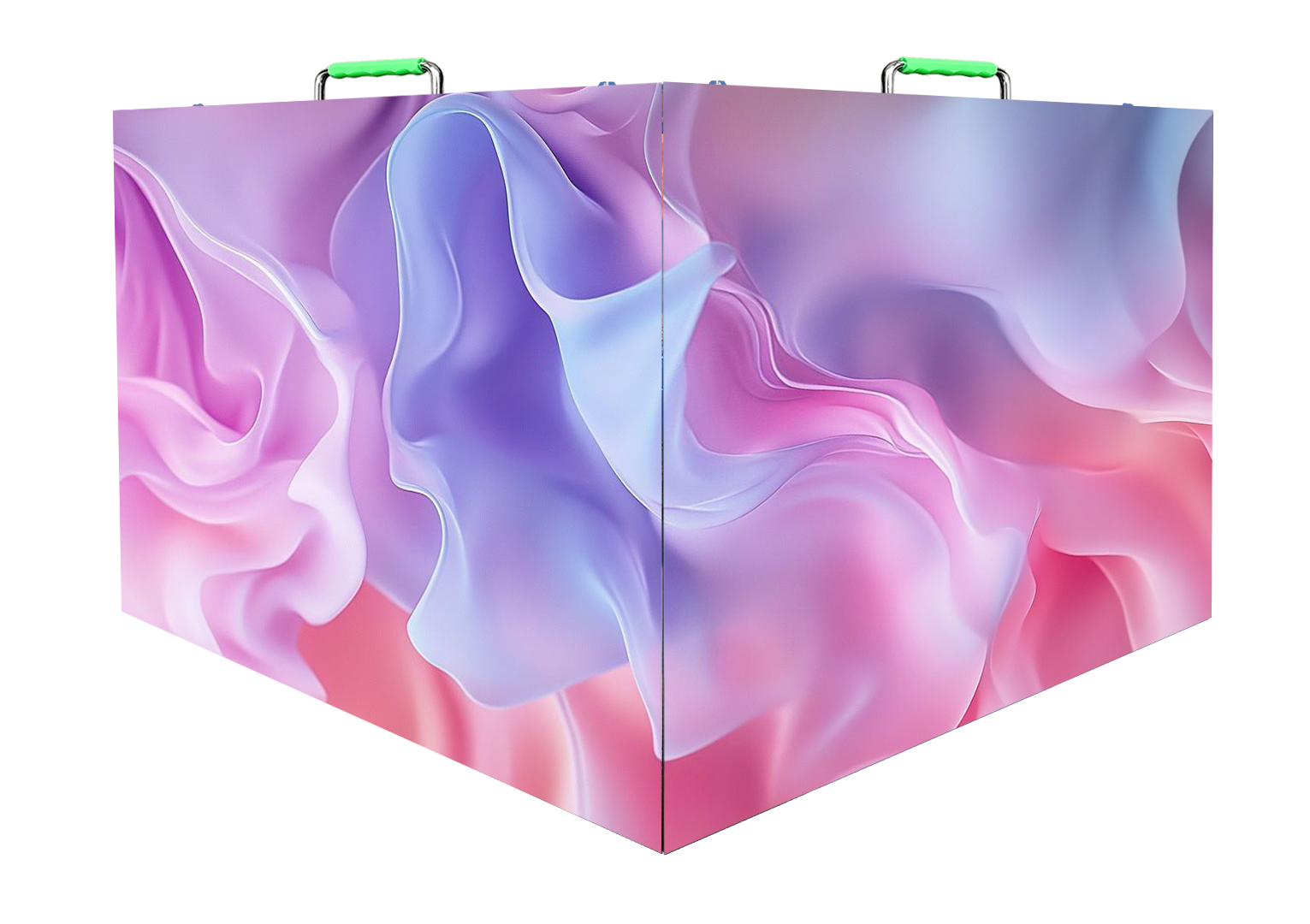

45° Bevel Edge Splicing:LED modules are interchangeable for common use no matter left/right/up/down, 45° Bevel edge splicing make the flatness, reliability.

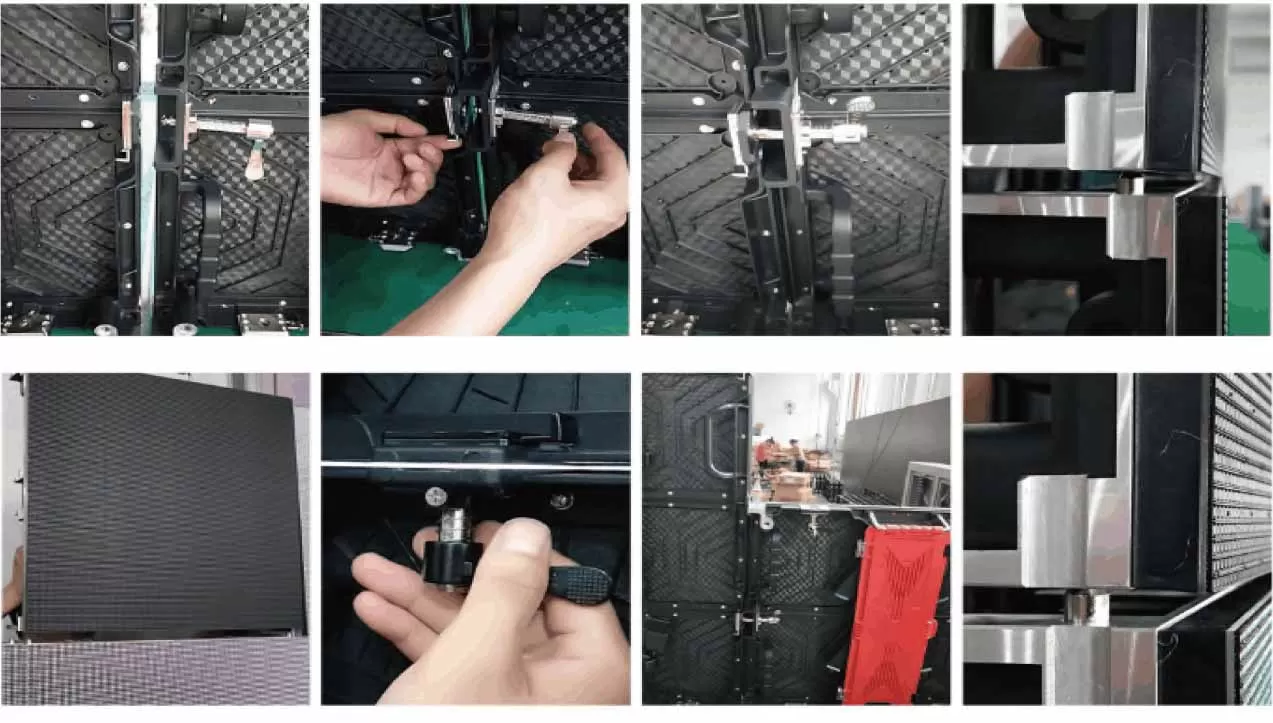

Equipped with specially designed maintenance tools, the front-end module can be quickly replaced, reducing labor and time costs and minimizing downtime.
LED modules are interchangeable for common use no matter left/ight/up/down, 45°Bevel edge splicing make the flatness, reliability.

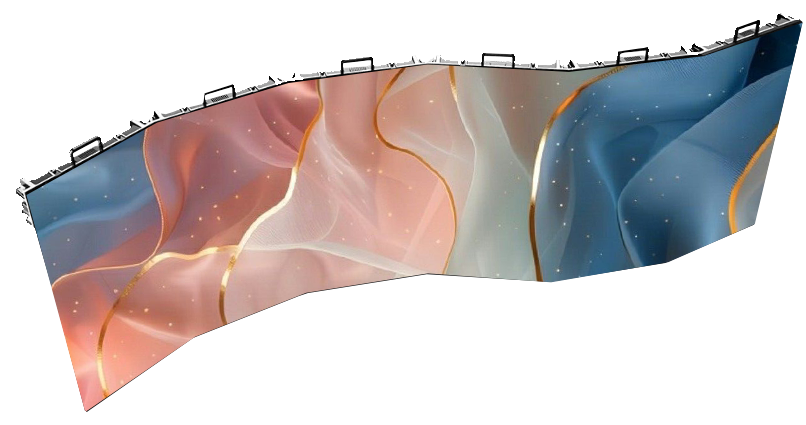

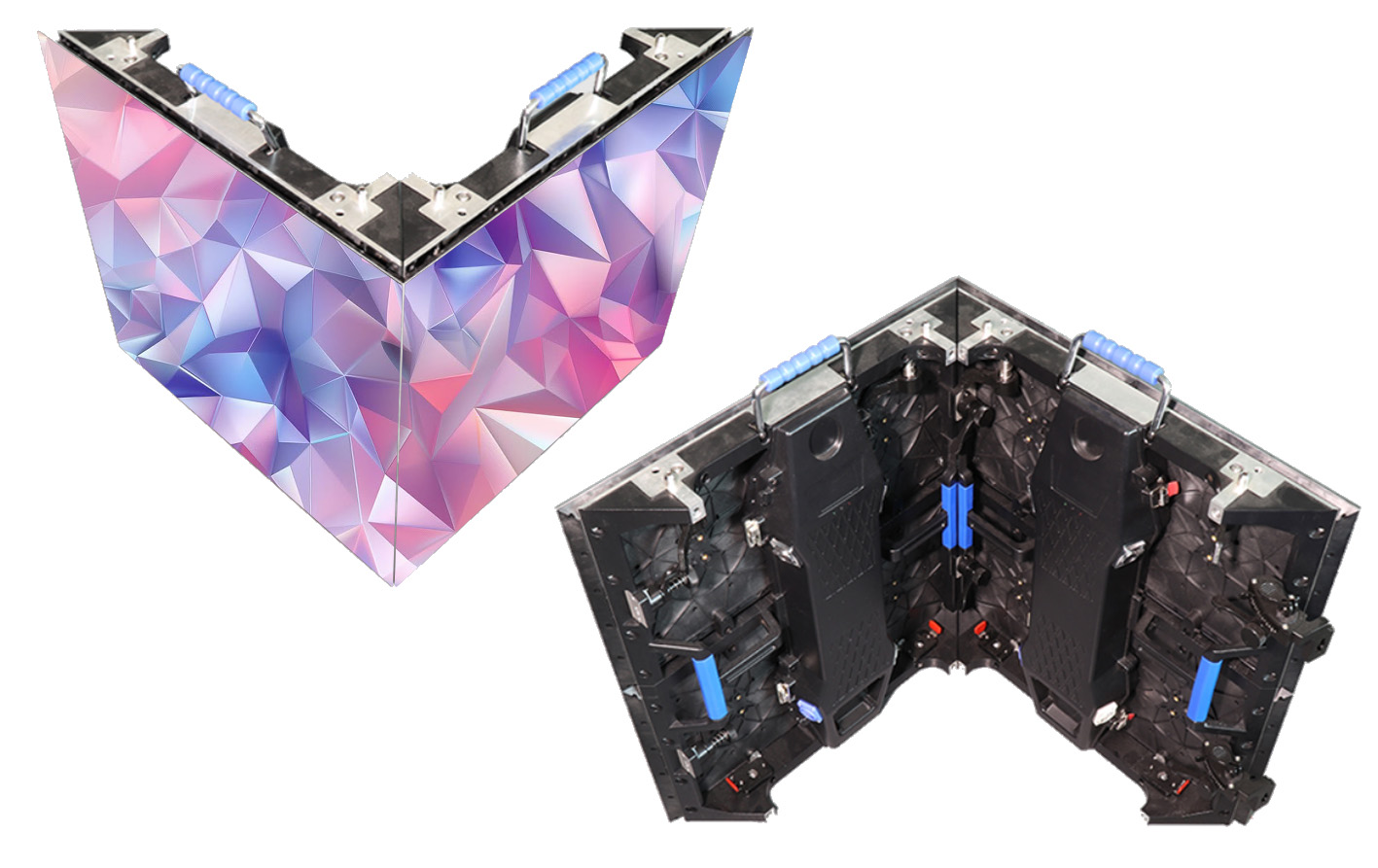

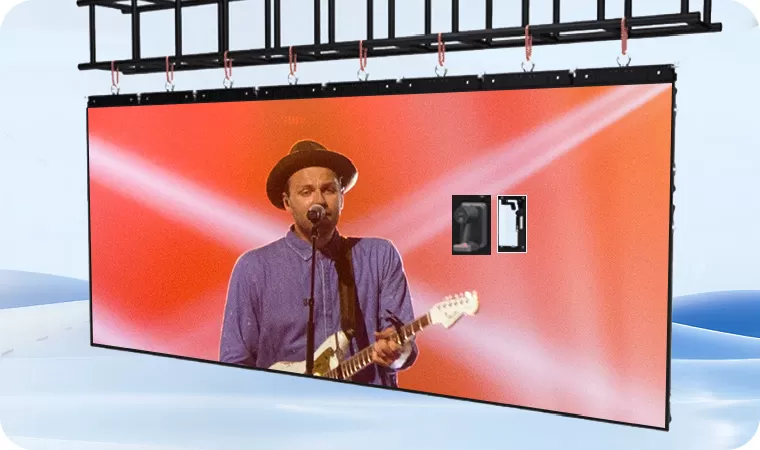

The TV wall can be adjusted to various combinations such as 15°, 0°, -15°, right angle combination, etc. according to the installation environment.

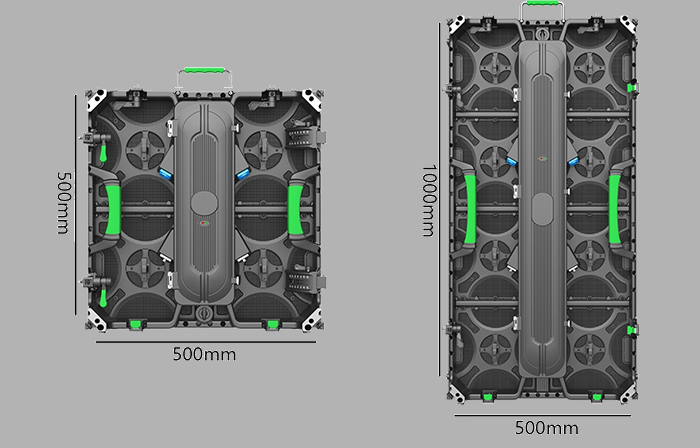

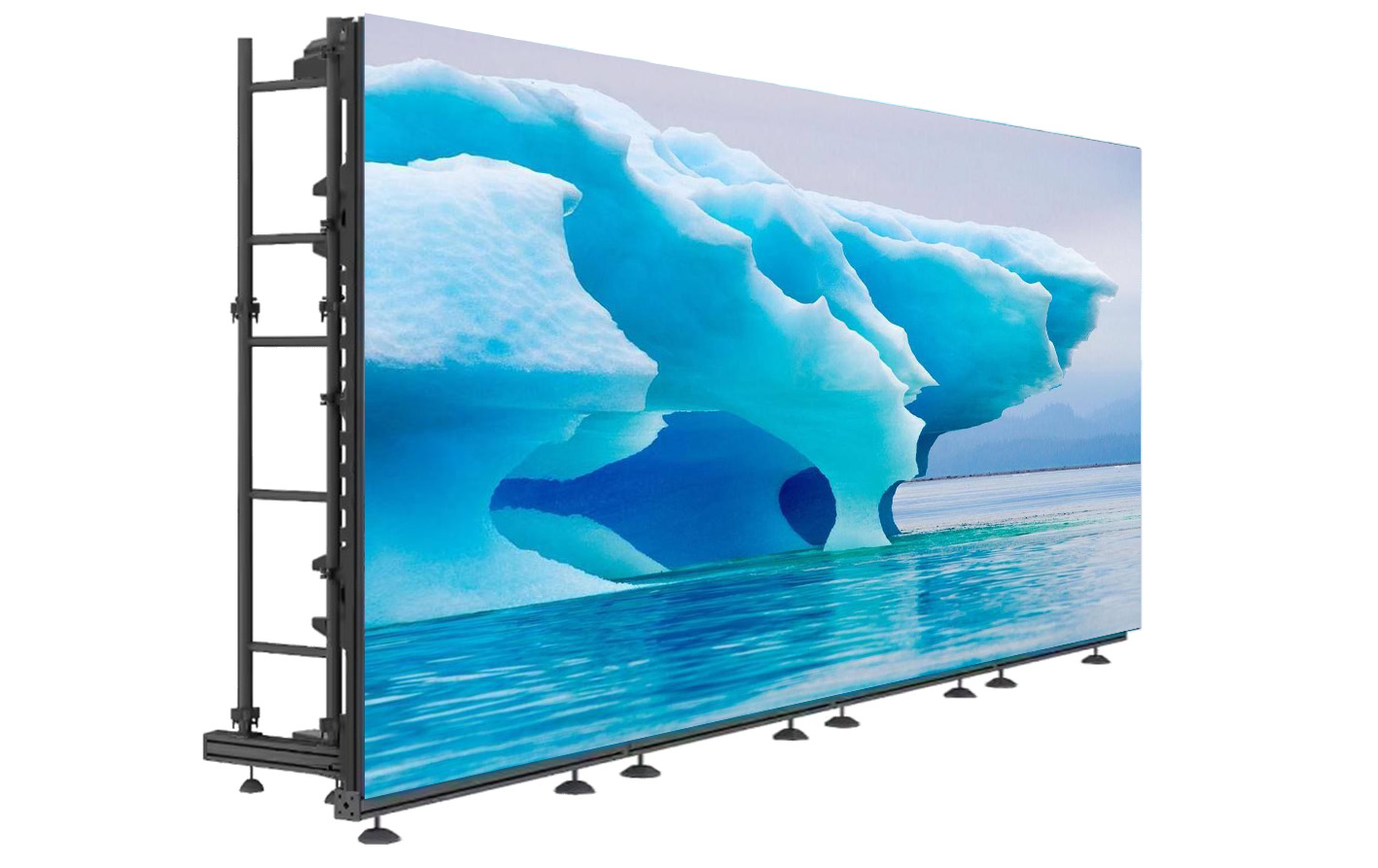

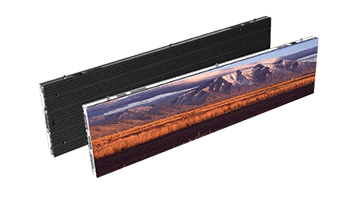

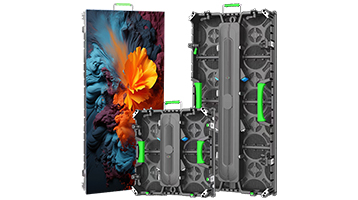

The WL21-IR series is available in two heights (500mm and 1000mm), which can be combined in a variety of ways and quickly installed using connecting plates.

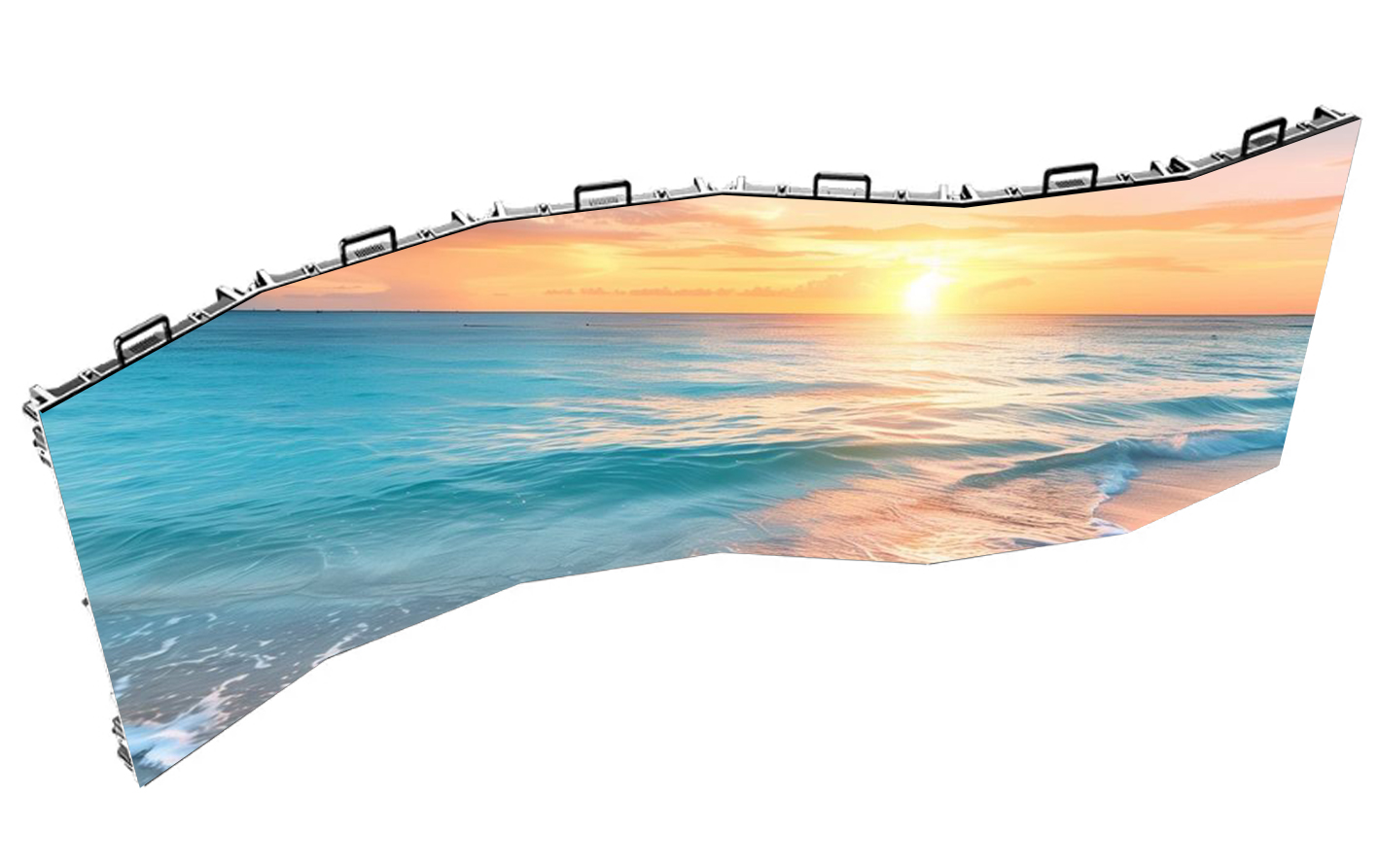

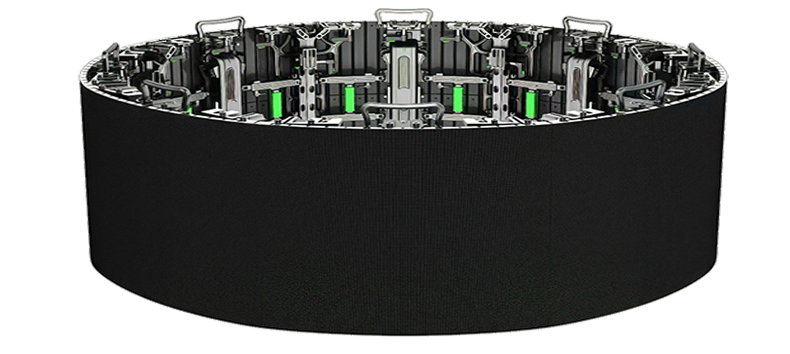

WL21-IR adopts modular lightweight structure, easy and convenient to transport and install. Quick lock and angle lock ensure safe assembly, and customize the curved display according to specific needs.

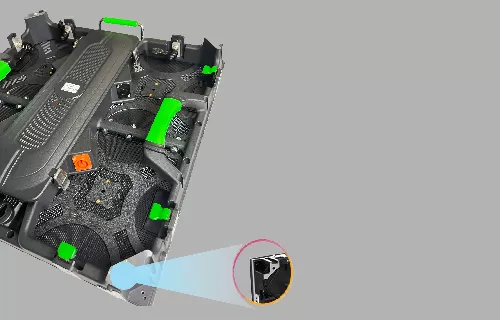

The housing adopts a protective corner design, which can effectively protect the edges and corners of the display to prevent it from collision and damage during installation or transportation.

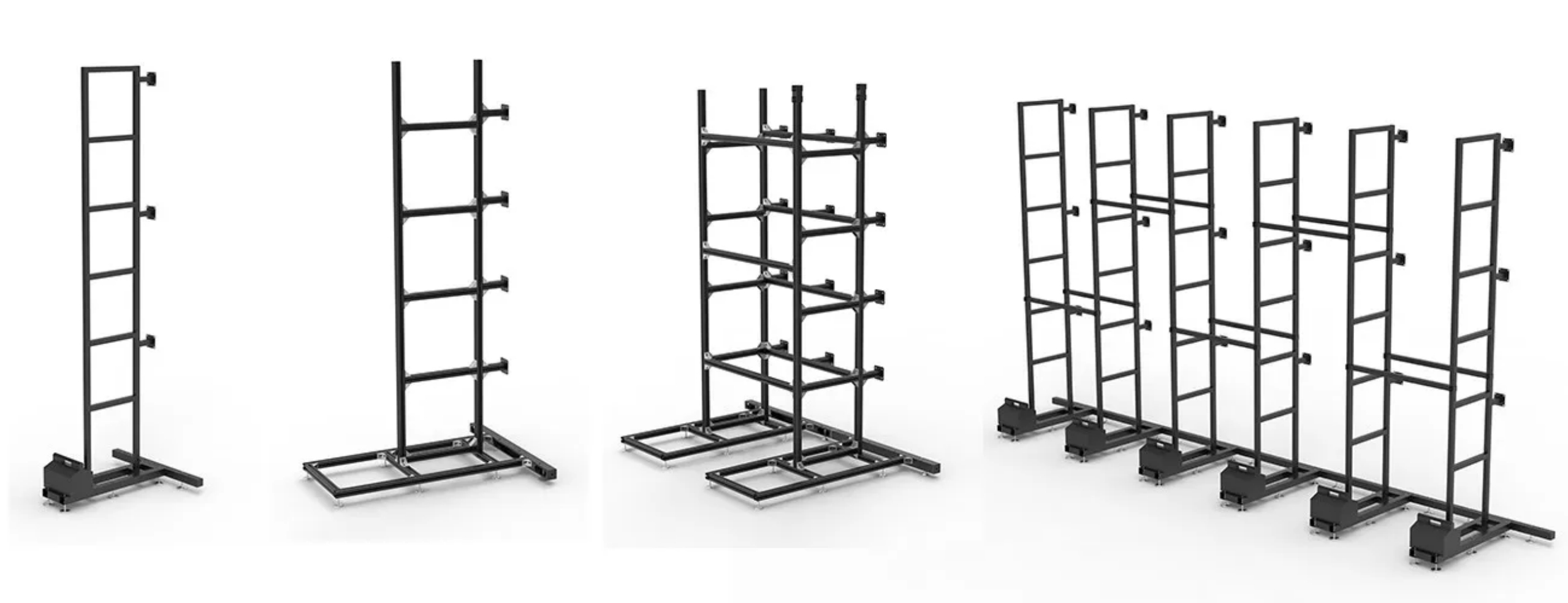

Aluminum profile support

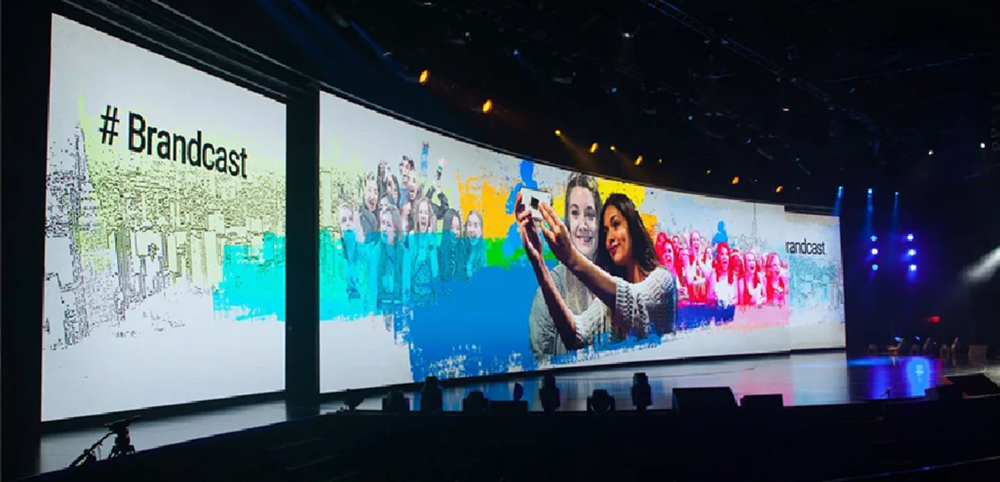

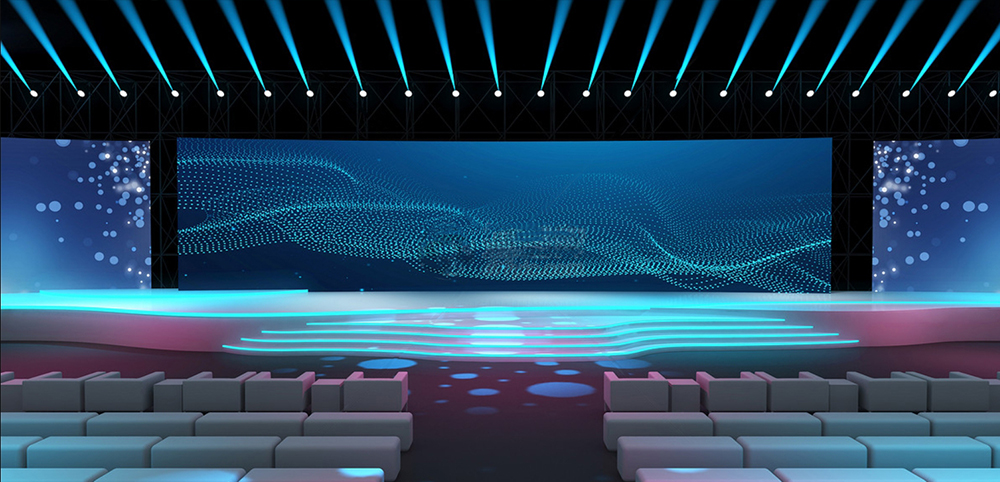

Concert

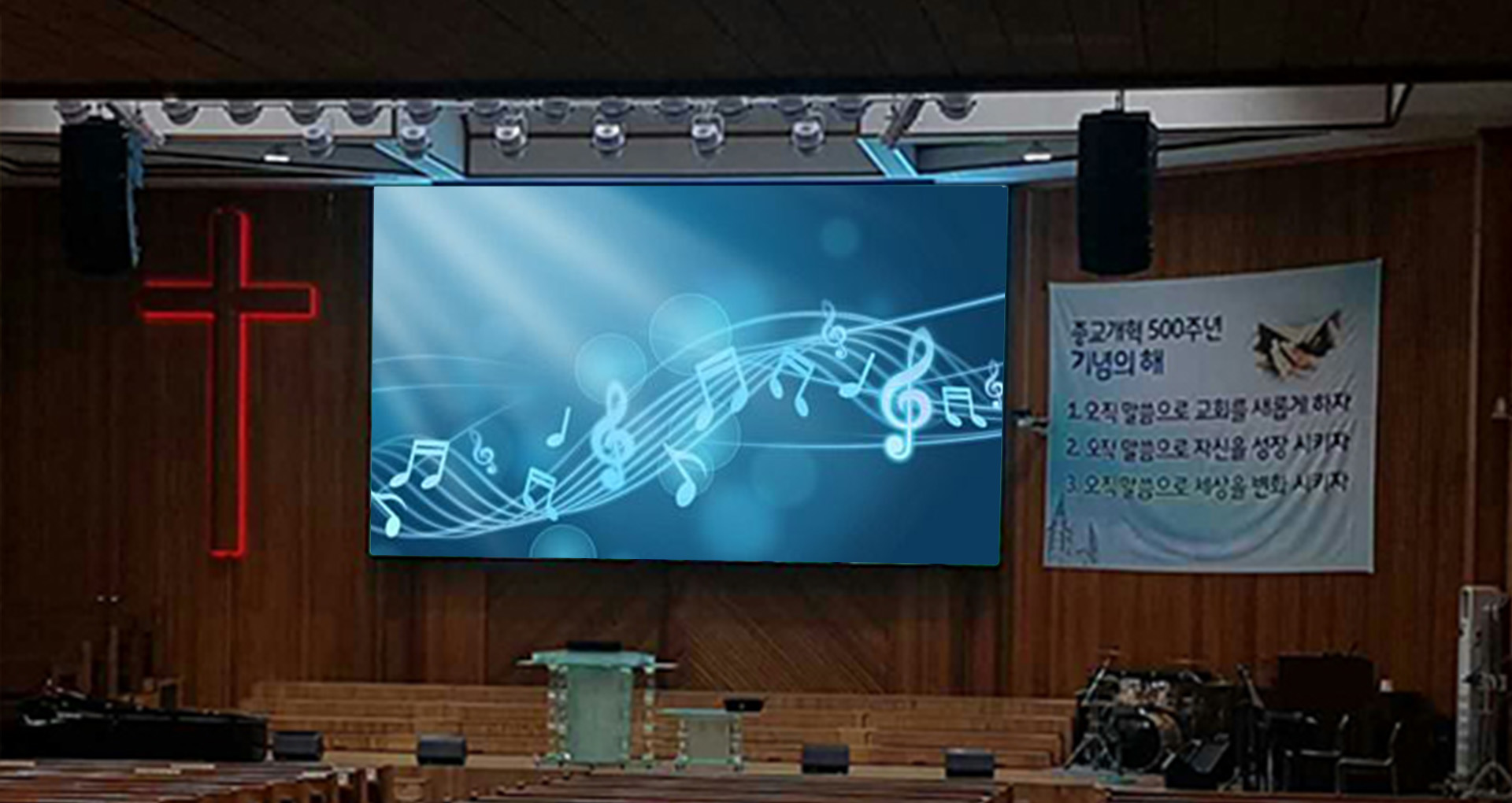

Religion
Activity
