WL21-3216 Standard Fine Pitch LED: High Quality Materials

Home
INDOOR LED SCREEN
SMD
WL21-3216 Series

Standard Fine Pitch LED Display

Model:WL21-3216 Series

- High-definition visuals for indoor applications
- Ideal for corporate lobbies and retail environments
- Enhances spaces with stunning clarity and vibrancy
- Premium viewing experience across indoor settings

Tag:Smart center display, conference room display, LED display module

Get a Quote Download

Features Video Specifications Advantages Accessories

More Feature Are...

Adaptive brightness

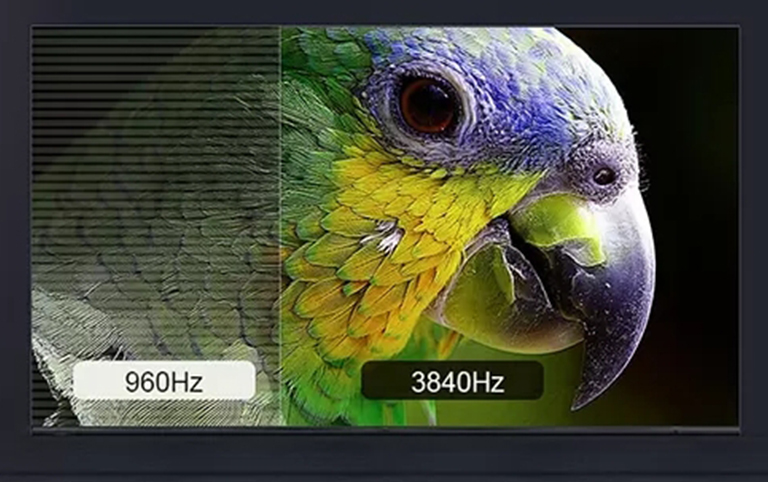

Professional high refresh

High color standards

High quality copper bracket

Video

Unboxing Rental LED

LED installation demonstration

LED packaging and transportation display

Specifications

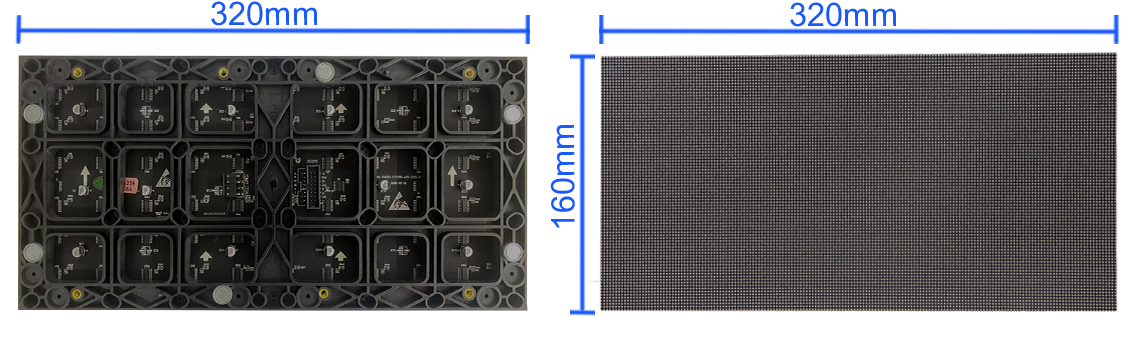

Module Specifications

The pixel spacing of each model is different, and you can choose according to the environmental conditions.

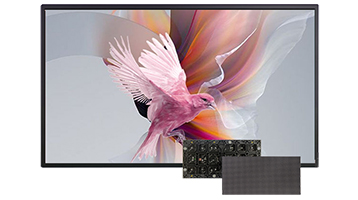

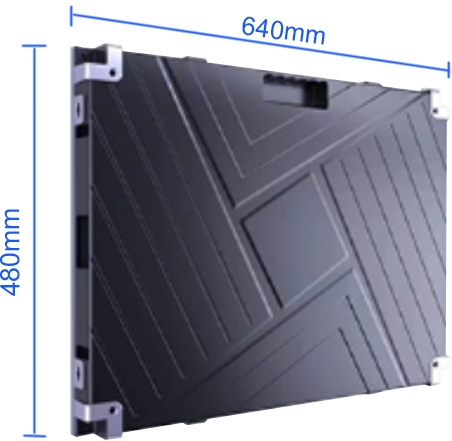

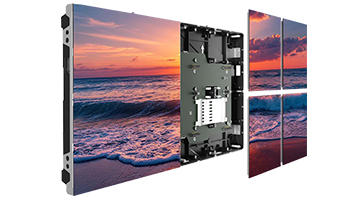

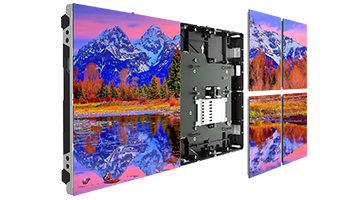

WL21-3216 series equipped with simple cabinet

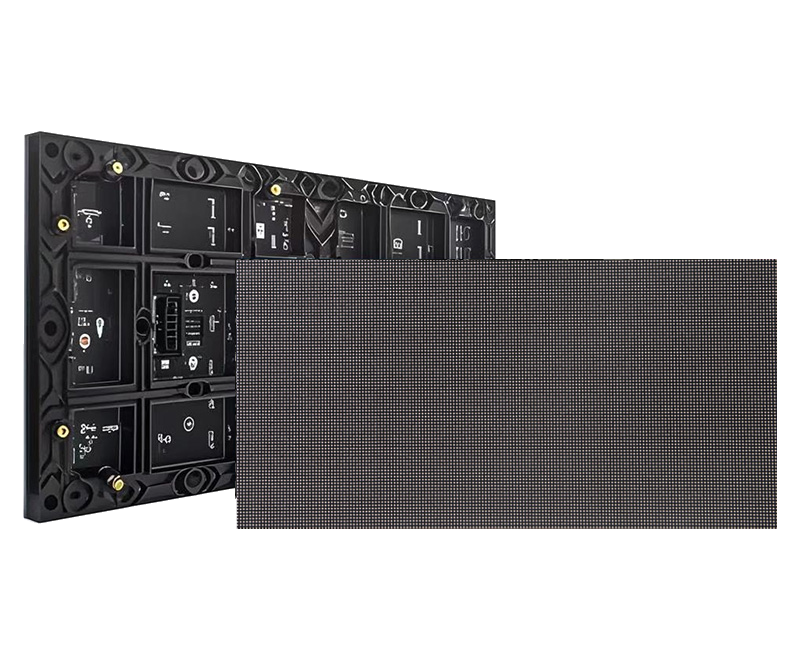

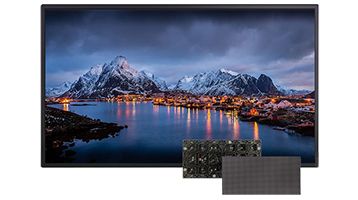

Modules

Simple box

Product Name	WL21- 3216- P1.2	WL21- 3216- P1.5	WL21 - 3216- P1.6	WL21- 3216- P1.8	WL21- 3216- P2.0	WL21- 3216- P2.5	WL21- 3216- P3.0	WL21 - 3216- P4.0
Pixel Pitch(mm)	1.25mm	1.53mm	1.667mm	1.86mm	2.0mm	2.5mm	3.076mm	4.0mm
Pixel Density (Pixels/Sqm)	640000	422500	360000	288906	250000	160000	105625	62500
Input Voltage	220V	220V	220V	220V	220V	220V	220V	220V
Lamp Type	SMD1010	SMD1212	SMD1212	SMD1515	SMD1515	SMD2020	SMD2020	SMD2020
Module Size	320×160mm	320×160mm	320×160mm	320×160mm	320×160mm	320×160mm	320×160mm	320×160mm
Module Resolution(mm)	256×128	208×104	192×96	172×86	160×80	128×64	104×52	80×40
Optimum Viewing Distance	1.2m-15m	1.5m-20m	1.5m-20m	1.8m-28m	2.0m-25m	2.5m-30m	3.0m-40m	4.0m-40m
Horizontal Viewing Angle	≥160°	≥160°	≥160°	≥160°	≥160°	≥160°	≥160°	≥160°
Vertical Viewing Angle	≥140°	≥140°	≥140°	≥140°	≥140°	≥140°	≥140°	≥140°
Max. Power Consumption	32.5w	28.5w	26.5w	24.5w	22.5w	18.5w	17.5w	27.5w
Drive Mode	1/64	1/52	1/48	1/43	1/40	1/32	1/26	1/20
Refresh Rate	3840Hz	3840Hz	3840Hz	3840Hz	3840Hz	3840Hz	3840Hz	3840Hz

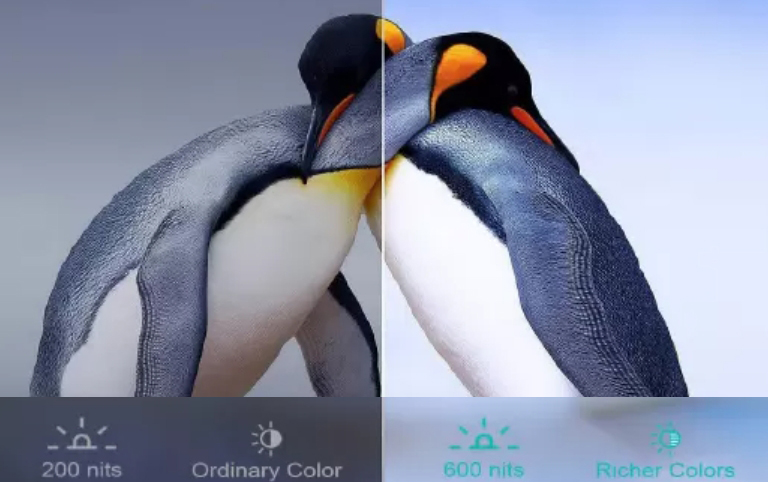

White Balance Brightness	600 CD	600 CD	600 CD	600 CD	600 CD	600 CD	600 CD	600 CD
Weight	0.2kg	0.2kg	0.2kg	0.2kg	0.18kg	0.18kg	0.18kg	0.18kg
Operating Temp(℃)	-20℃~60℃	-20℃~60℃	-20℃~60℃	-20℃~60℃	-20℃~60℃	-20℃~60℃	-20℃~60℃	-20℃~60℃
Storage Temp(℃)	-25℃~60℃	-25℃~60℃	-25℃~60℃	-25℃~60℃	-25℃~60℃	-25℃~60℃	-25℃~60℃	-25℃~60℃
Humidity Range	10%~90%, Non-condensing	10%~90%, Non-condensing	10%~90%, Non-condensing	10%~90%, Non-condensing	10%~90%, Non-condensing	10%~90%, Non-condensing	10%~90%, Non-condensing	10%~90%, Non-condensing
Life Time	75,000~ 100,000hr	75,000~ 100,000hr	75,000~ 100,000hr	75,000~ 100,000hr	75,000~ 100,000hr	75,000~ 100,000hr	75,000~ 100,000hr	75,000~ 100,000hr

Download Brochure

We Can't Wait to Meet You!

No matter your application, our team of experts can deliver a turn-key visualization solution and world-class support optimized for your needs.

Functional Advantages

Seamless splicing
High contrast
Ultra-wide viewing angle
Gold-plated power socket

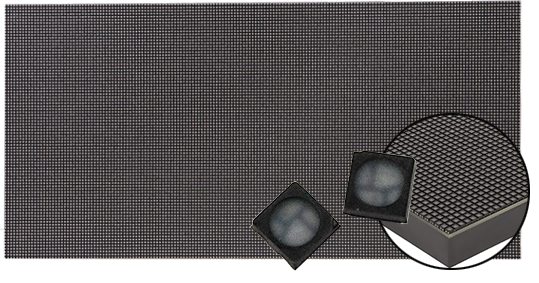

High-quality lamp beads

High Quality Material

Details determine success or failure, only high-quality materials are used

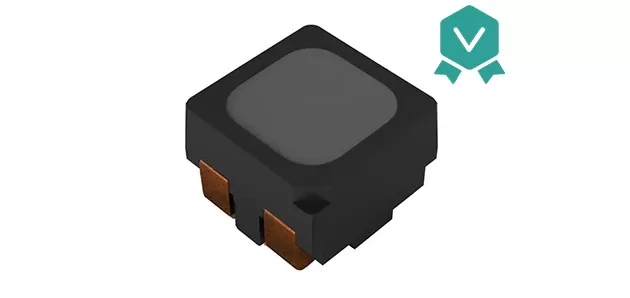

Copper Wire Copper Bracket

The lamp uses copper wire and copper bracket. Compared with iron bracket, the lamp has a longer service life and is not afraid of rust and corrosion.

Copper wire copper bracket lamp (WILIANG WL21)

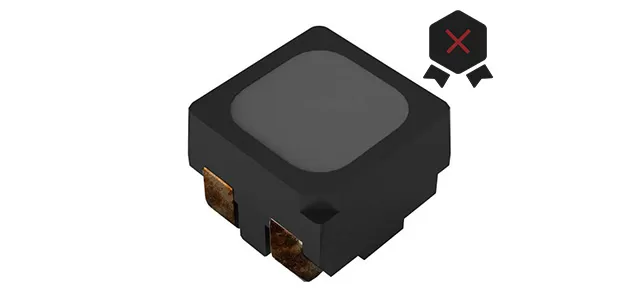

Copper wire iron bracket (Prone to rust)

Good Consistency And Long Life

Exceptional consistency ensuring uniform visual performance.
Extended longevity for reliable, long-term operation.
Versatile adaptability across all high-display applications.
Durable design sustaining quality in any environment.

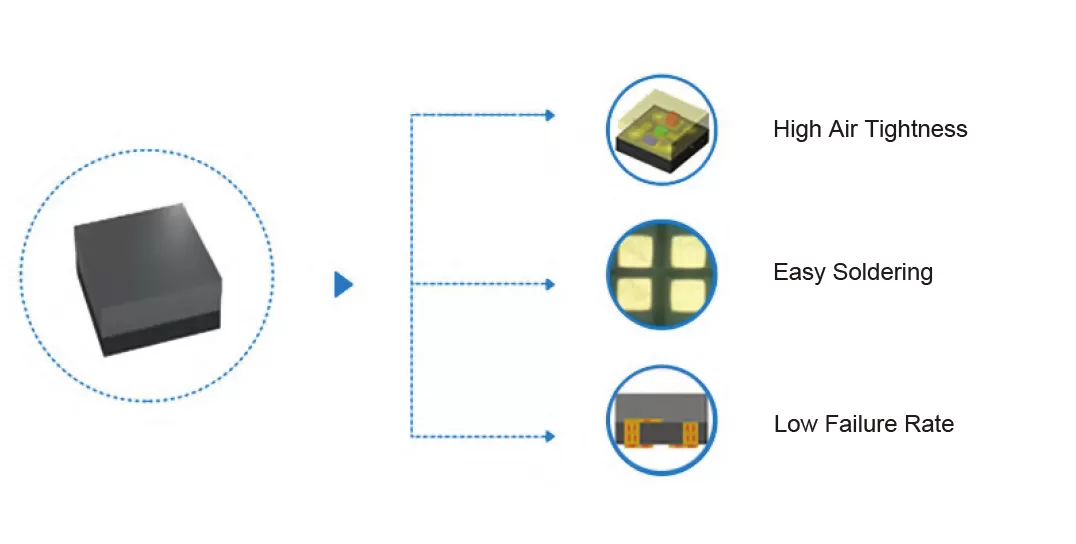

King Light Engineering Exclusively For Lamp

Extended lifespan surpassing traditional copper-bracket lamps (King Light Engineering design).
High luminous consistency preventing color/brightness discrepancies.

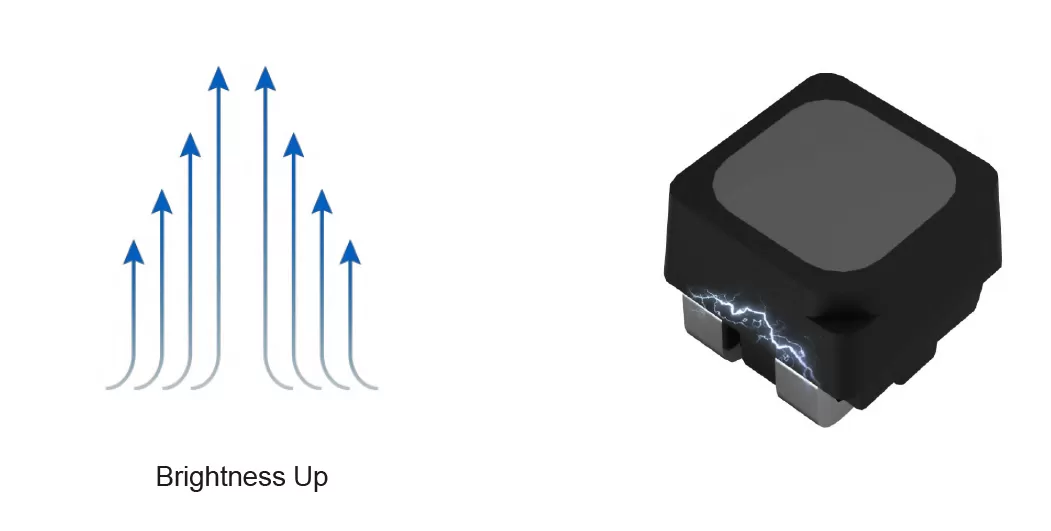

Enhanced brightness via larger current capacity.
Corrosion-resistant construction ensuring rust-free durability.

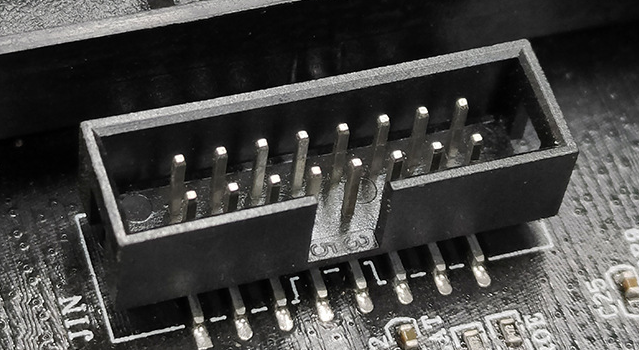

Pin Header Anti-Collision Guardrail Protection

The pin header protection guardrail is used to protect the pin header and prevent the pin header from changing its array, which is more convenient for installation and transportation to prevent the pin header from being squeezed and deformed.
